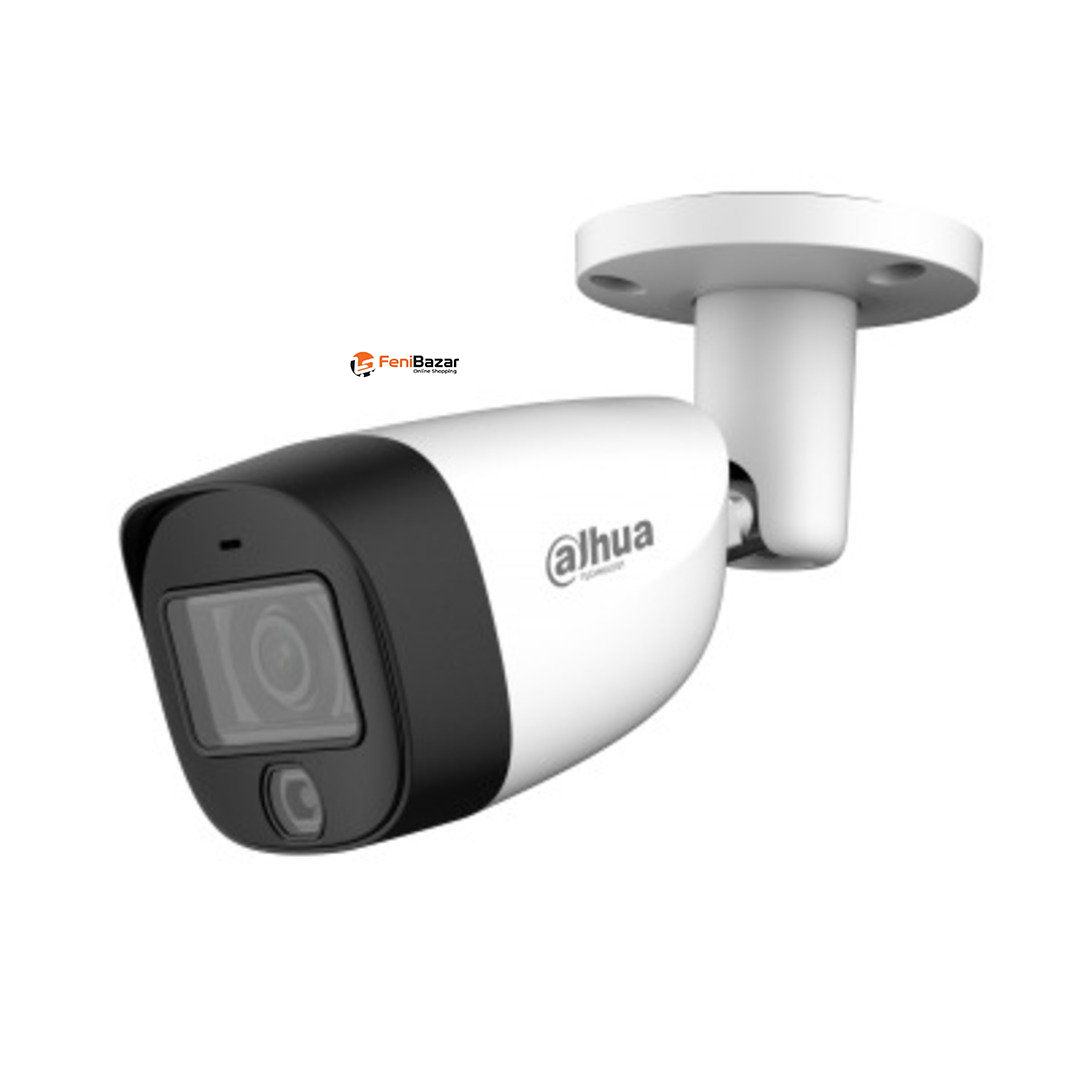

Dahua HAC-HFW1200CMP-IL-A 2MP Smart Dual Light HDCVI Bullet CC Camera
1920×1080 Full HD, 2.8mm/3.6mm Fixed Lens, 20m IR & 20m Warm Light
Built-in Audio Input, TVI/AHD/CVI/CVBS, 3D NR, IP67 & Metal Casing
| Dahua HAC-HFW1200CMP-IL-A – Technical Specifications | |
| Camera | |
| Image Sensor | 2MP CMOS |
|---|---|
| Maximum Resolution | 1920 × 1080 |
| Scanning System | Progressive |
| Electronic Shutter | PAL: 1/25s–1/100000s; NTSC: 1/30s–1/100000s |
| Minimum Illumination | 0.01 lux @ F2.0 (Color, 30 IRE); 0.001 lux @ F2.0 (B/W, 30 IRE); 0 lux (Illuminator On) |
| S/N Ratio | >65dB |
| IR Illumination Distance | 20m |
| Warm-Light Distance | 20m |
| Illuminator On/Off Control | Auto |
| Illuminators | 1 Warm Light + 1 IR Light |
| Pan | 0°–360° |
| Tilt | 0°–78° |
| Rotation | 0°–360° |
| Lens | |
| Lens Type | Fixed-Focal |
| Auto Focus | No |
| Lens Mount | M12 |
| Focal Length | 2.8mm / 3.6mm |
| Maximum Aperture | F2.0 |
| Iris Control | Fixed |
| Close Focus Distance | 2.8mm: 0.5m; 3.6mm: 0.7m |
| Field of View | |
| 2.8mm | H: 102° / V: 60° / D: 129° |
| 3.6mm | H: 83° / V: 48° / D: 105° |
| DORI Distance | |
| Lens | |
| Detect | |
| Observe | |
| Recognize | |
| Identify | |
| 2.8mm | |
| 41.1m | |
| 16.5m | |
| 8.3m | |
| 4.1m | |
| 3.6mm | |
| 50.9m | |
| 20.3m | |
| 10.2m | |
| 5.1m | |
| Video | |
| CVI | PAL 1080p @ 25fps / NTSC 1080p @ 30fps |
| AHD | PAL 1080p @ 25fps / NTSC 1080p @ 30fps |
| TVI | PAL 1080p @ 25fps / NTSC 1080p @ 30fps |
| CVBS | PAL 960H / NTSC 960H |
| Resolution | 1080p (1920 × 1080) / 960H (960 × 576 / 960 × 480) |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight | BLC / HLC / DWDR |
| WDR | DWDR |
| White Balance | Auto / Area White Balance |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR & WL / WL Mode / IR Mode |
| Mirror | Yes |
| Privacy Masking | Off / On, 8 rectangular areas |
| Audio | |
| Audio Input | 1 Channel |
| Video Output | |
| Interface | 1× BNC |
| Video Output | CVI / TVI / AHD / CVBS |
| Power | |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max. 2.6W (12V DC, IR On) |
| Environment | |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | <95% RH, non-condensing |
| Storage Temperature | -40°C to +60°C |
| Storage Humidity | <95% RH, non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |
| Dimensions | Φ94.0 × 85.7mm |
| Net Weight | 0.30kg |
| Gross Weight | 0.42kg |
| Installation | Wall Mount / Ceiling Mount / Vertical Pole Mount |
| Certifications | |
| CE-LVD | EN 62368-1 |
| CE-EMC | EN 55032 / EN 55035 |
The Dahua HAC-HFW1200CMP-IL-A is a 2MP Full-Color HDCVI Audio Bullet Camera designed for clear and reliable video surveillance. It features a 2MP CMOS sensor with 1920 × 1080 Full HD resolution, progressive scanning, and support for CVI, TVI, AHD, and CVBS video formats.
The camera delivers 1080p video at up to 25fps in PAL and 30fps in NTSC. It provides 20m IR illumination and 20m warm-light illumination with Smart IR & WL, WL Mode, and IR Mode, helping provide suitable illumination for different surveillance conditions.
The camera uses an M12 fixed-focal lens available in 2.8mm and 3.6mm options with an F2.0 maximum aperture. The 2.8mm lens provides a 102° horizontal, 60° vertical, and 129° diagonal field of view, while the 3.6mm lens provides 83° horizontal, 48° vertical, and 105° diagonal coverage.
Image processing features include BLC, HLC, DWDR, Auto/Area White Balance, Auto Gain Control, and 3D Noise Reduction. The camera supports Auto ICR, Color, and B/W day/night modes for dependable image performance under changing lighting conditions.
The camera provides 1-channel audio input and a single BNC video output supporting CVI, TVI, AHD, and CVBS formats. This allows flexible integration with compatible HD and SD analog surveillance systems.
Featuring a metal casing and IP67 protection, the camera is designed for demanding surveillance environments. It operates from -40°C to +60°C with humidity below 95% RH, non-condensing.
The camera supports wall mount, ceiling mount, and vertical pole mount installation. Its adjustment range includes 0°–360° pan, 0°–78° tilt, and 0°–360° rotation.
2MP CMOS sensor
1920 × 1080 Full HD resolution
1080p @ 25fps PAL / 30fps NTSC
2.8mm / 3.6mm M12 fixed-focal lens
F2.0 maximum aperture
20m IR illumination
20m warm-light illumination
Smart IR & WL / WL Mode / IR Mode
BLC, HLC & DWDR
3D Noise Reduction
Auto ICR / Color / B/W
1-channel audio input
CVI / TVI / AHD / CVBS support
1× BNC video output
Metal casing
IP67 protection
12V DC ±30% power supply
Maximum 2.6W power consumption
-40°C to +60°C operating temperature
Wall / ceiling / vertical pole mounting
DORI detection up to 41.1m with 2.8mm lens
DORI detection up to 50.9m with 3.6mm lens
