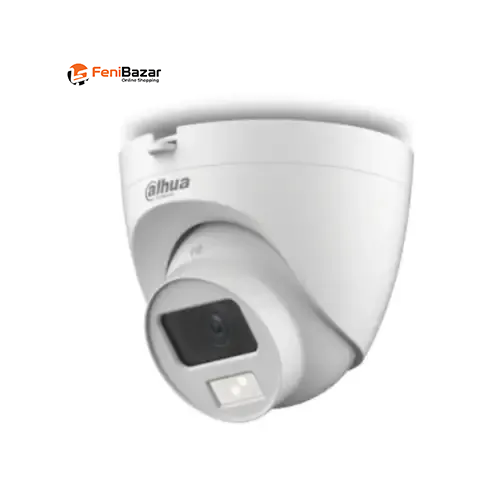

5MP HDCVI Eyeball Camera with 20m IR & 20m Warm Light
2880×1620 Resolution, 2.8mm/3.6mm F1.6 Fixed Lens & Multi-Format Output
CVI/TVI/AHD/CVBS Support, 2D NR, Auto/Manual IR & 12V DC Power
| General | |
| Casing | Plastic |
|---|---|
| Dimensions | Φ97.1 × 93.8mm |
| Net Weight | 0.19kg |
| Gross Weight | 0.3kg |
| Pan | 0°–360° |
| Tilt | 0°–78° |
| Rotation | 0°–360° |
| Operating Temperature | -40°C to +55°C |
| Operating Humidity | <95% RH, non-condensing |
| Storage Temperature | -40°C to +55°C |
| Storage Humidity | <95% RH, non-condensing |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max. 4.5W (12V DC, WLED On) |
| Camera | |
| Image Sensor | 5MP CMOS |
| Scanning System | Progressive |
| Electronic Shutter | PAL: 1/25s–1/100,000s; NTSC: 1/30s–1/100,000s |
| Minimum Illumination | 0.05 lux @ F1.6 (Color, 30 IRE); 0.005 lux @ F1.6 (B/W, 30 IRE); 0 lux (Illuminator On) |
| S/N Ratio | >65dB |
| IR Distance | 20m |
| Warm Light Distance | 20m |
| IR On/Off Control | Auto / Manual |
| Lens | |
| Lens Type | Fixed-Focal |
| Mount Type | M12 |
| Focal Length | 2.8mm / 3.6mm |
| Maximum Aperture | F1.6 |
| Angle of View | 2.8mm: H106° / V56° / D125°; 3.6mm: H92° / V48° / D109° |
| Focus Control | Fixed |
| Close Focus Distance | 2.8mm: 0.8m; 3.6mm: 1.3m |
| Video | |
| Resolution | 2880(H) × 1620(V) |
| CVI | PAL 5MP @ 25fps / 4MP @ 25fps / 1080p @ 25fps; NTSC 5MP @ 25fps / 4MP @ 30fps / 1080p @ 30fps |
| AHD | PAL 4MP @ 25fps; NTSC 4MP @ 30fps |
| TVI | PAL 4MP @ 25fps; NTSC 4MP @ 30fps |
| CVBS | PAL 960H; NTSC 960H |
| Video Output | CVI / TVI / AHD / CVBS via 1 × BNC port |
| Day/Night | Auto (ICR) / Color / B/W |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR |
| Warranty | |
| Warranty | 1 Year |
This 5MP fixed-focal camera features a CMOS image sensor with a maximum resolution of 2880 × 1620, delivering detailed video for surveillance and monitoring applications. Progressive scanning and multiple video formats provide flexible recording and system compatibility.
The camera uses an M12 fixed-focal lens available in 2.8mm and 3.6mm options. The 2.8mm lens provides a 106° horizontal, 56° vertical and 125° diagonal field of view, while the 3.6mm lens offers 92° horizontal, 48° vertical and 109° diagonal coverage.
For low-light monitoring, the camera provides up to 20m IR distance and 20m warm-light illumination. It supports Auto/Manual IR control, Auto ICR, Color and B/W modes, along with Auto/Manual gain control and 2D noise reduction.
The camera supports CVI, TVI, AHD and CVBS video output through a single BNC port. It operates on 12V DC ±30% with a maximum power consumption of 4.5W when the WLED is on. Its plastic casing, IP-independent stated construction, operating temperature of -40°C to +55°C and 1-year warranty make it suitable for compatible surveillance installations.
