5MP WiFi PT Camera with 2880×1620 Resolution & DWDR
Fixed-Focal F2.0 Lens, 10m IR & 355° Pan / 80° Tilt
Built-in Mic & Speaker, 256GB MicroSD & iOS/Android App
| Camera | |
| Image Sensor | 1/3" CMOS |
|---|---|
| Effective Pixels | 5MP |
| Maximum Resolution | 2880 × 1620 |
| Lens | Fixed-Focal, Max. Aperture F2.0 |
| Pan | 0° to 355° |
| Tilt | -5° to 80° |
| Field of View | H: 74°, V: 41°, D: 88° |
| WDR | DWDR |
| IR Distance | Up to 10m |
| Video & Audio | |
| Video Compression | H.265 |
| Video Bit Rate | 80 kbps–4096 kbps |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Storage | |
| Storage Type | Micro SD Card |
| Maximum Storage | Up to 256GB |
| Network & Connectivity | |
| Mobile App | iOS & Android |
| Control | |
| Pan & Tilt | Pan 0° to 355°, Tilt -5° to 80° |
| Button | Reset Button |
| Power | |
| Power Supply | 5V DC |
| Maximum Power Consumption | 4W (Live + IR + PT Rotation) |
| Physical Specification | |
| Color | White |
| Dimension | Φ77.8 × 108.1mm |
| Weight | 195g |
| Operating Temperature | -10°C to +45°C |
| Certification | |
| Certification | CE |
| Warranty | |
| Warranty | 2 Years |
| Adapter Warranty | No Warranty |

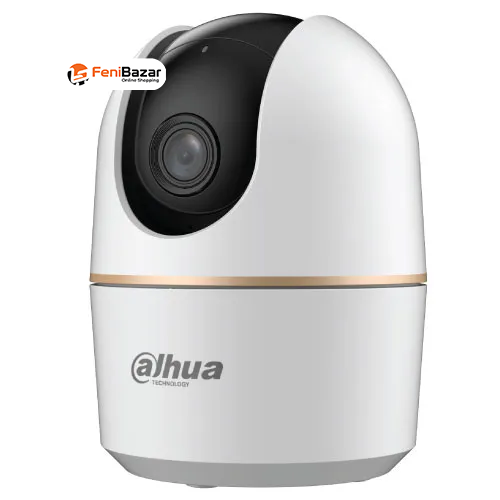

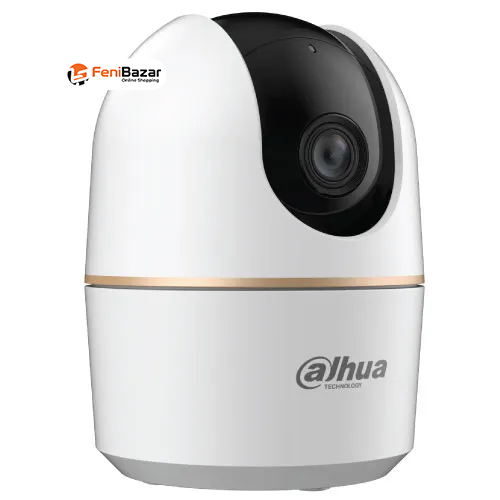

The Dahua DH-IPC-H5AE is a 5MP Indoor Pan & Tilt Portable WiFi Camera designed for flexible indoor surveillance. It features a 1/3" CMOS sensor with a maximum resolution of 2880 × 1620 pixels. The fixed-focal lens with F2.0 maximum aperture provides a 74° horizontal, 41° vertical, and 88° diagonal field of view for indoor monitoring.
The camera supports 0° to 355° pan and -5° to 80° tilt movement, allowing users to adjust the viewing direction according to the monitoring area. It also supports up to 10 meters of IR illumination for low-light surveillance. DWDR helps improve image visibility in scenes with different brightness levels.
For video recording, the DH-IPC-H5AE supports H.265 compression with a video bit rate of 80 kbps to 4096 kbps. The built-in microphone and speaker support two-way audio communication. A reset button is also provided for convenient device management.
The camera supports Micro SD card storage up to 256GB and provides iOS and Android mobile app support. It is powered by 5V DC and consumes up to 4W during live viewing, IR operation, and Pan & Tilt rotation. With its compact white design, 195g weight, and CE certification, the Dahua DH-IPC-H5AE is suitable for homes, offices, shops, and other indoor surveillance applications.
