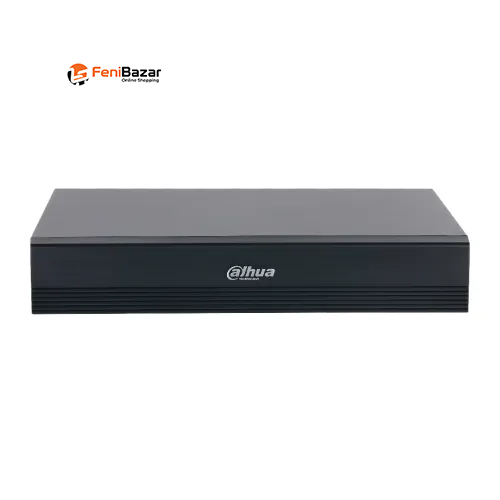

Dahua XVR1B16-I/T 16-Channel XVR with 18-Channel IP Camera Support
16-Channel Playback, Smart H.265+ Encoding, HDMI/VGA & 25-Screen IP Extension
1-SATA up to 16TB, 16-Channel Coaxial Two-Way Talk & SMD Plus
| System | |
| Model | XVR1B16-I/T |
|---|---|
| Main Processor | Industrial-grade Processor |
| Operating System | Embedded Linux |
| Audio & Video | |
| IP Camera Input | 2 IP channels by default + 16 additional channels |
| Two-Way Talk | 16-channel coaxial two-way talk |
| Local & Network Two-Way Talk | Shares audio input with the first channel |
| Display | |
| HDMI | 1 |
| VGA | 1 |
| HDMI Resolution | 1920 × 1080 / 1280 × 1024 / 1280 × 720 |
| VGA Resolution | 1920 × 1080 / 1280 × 1024 / 1280 × 720 |
| Multi-Screen Display | 1/4/8/9/16 |
| IP Extension Mode | 1/4/8/9/16/25 |
| Recording | |
| Video Compression | AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Audio Compression | G.711a / G.711u / PCM |
| Main Stream | 1st channel 1080N/720p @ 1–25/30fps; other channels 1080N/720p @ 1–15fps; 960H/D1/CIF @ 1–25/30fps |
| Sub Stream | CIF @ 1–7fps |
| Bit Rate | 32 kbps–4096 kbps |
| Record Mode | General / Alarm / Motion Detection |
| Video Detection & Alarm | |
| Alarm Functions | Motion Detection / HDCVI Alarm / Camera External Alarm / Network Alarm / PIR Alarm |
| Intelligent Alarm | SMD Plus |
| Playback & Backup | |
| Synchronized Playback | 1/4/9/16 channels |
| Playback Functions | Play / Pause / Stop / Rewind / Fast Play / Slow Play / Next File / Previous File / Next Camera / Previous Camera / Full Screen / Repeat / Shuffle / Backup Selection / Digital Zoom |
| Backup | USB Device / Network |
| Third-Party Support | |
| Supported Brands | Dahua / Arecont Vision / AXIS / Bosch / Brickcom / Canon / CP Plus / Dynacolor / Honeywell / Panasonic / Pelco / Samsung / Sanyo / Sony / Videotec / Vivotek and more |
| Network | |
| Ethernet | 1 × 10/100 Mbps RJ-45 |
| Network Protocols | HTTP / HTTPS / TCP/IP / IPv4 / IPv6 / RTSP / UDP / NTP / DHCP / DNS / SMTP / UPnP / IP Filter / FTP / DDNS / SNMP / Alarm Server / P2P / Auto Registration / IP Search |
| Network Support | IP Camera / DVR / NVS and more |
| Storage | |
| Internal HDD | 1 × SATA, up to 16TB |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | 2 × USB 2.0 rear ports |
| RS232 | N/A |
| RS485 | N/A |
| Power | |
| Power Supply | DC 12V/2A |
| Power Consumption | <10W |
| Environment | |
| Operating Temperature | -10°C to +45°C |
| Operating Humidity | 10%–90% RH |
| Storage Temperature | -20°C to +70°C |
| Storage Humidity | 0%–90% RH |
| Construction | |
| Dimensions | 260.0 × 231.6 × 47.6mm (W × D × H) |
| Net Weight | 0.89kg |
| Gross Weight | 1.54kg |
| Warranty | |
| Manufacturing Warranty | 1 Year |
The Dahua XVR1B16-I/T is a 16-channel Penta-brid compact digital video recorder designed for reliable CCTV recording and monitoring. It uses an industrial-grade processor with an embedded Linux operating system and supports flexible surveillance system configurations with IP camera connectivity and multiple video technologies.
The XVR1B16-I/T supports up to 18 IP camera channels in total, including 2 IP channels by default plus 16 additional channels. It also provides 16-channel two-way talk over coaxial cable, while local and network two-way talk shares the audio input with the first channel.
For efficient recording and storage management, the recorder supports AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264 video compression, along with G.711a, G.711u and PCM audio compression. It supports general, alarm and motion detection recording modes, with main-stream and sub-stream recording options and a bit rate range of 32 kbps to 4096 kbps.
The XVR1B16-I/T features SMD Plus intelligent alarm support along with motion detection, HDCVI alarm, camera external alarm, network alarm and PIR alarm functions. Playback supports up to 16-channel synchronized playback, while USB and network backup provide convenient options for saving recorded footage.

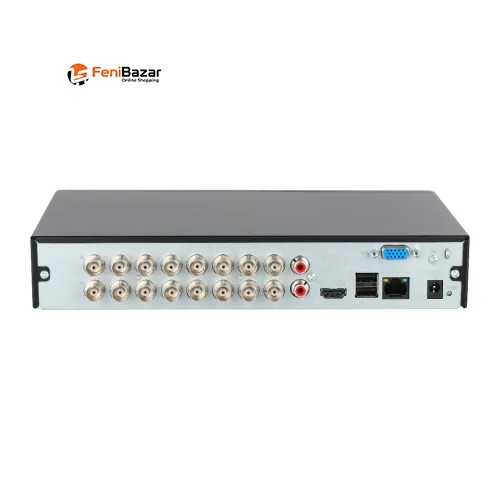

For display, the recorder provides HDMI and VGA outputs with resolutions up to 1920 × 1080. Multi-screen display supports up to 16 channels in standard mode and up to 25 channels when IP extension mode is enabled. It includes one SATA port supporting up to 16TB HDD storage, two rear USB 2.0 ports and a 10/100 Mbps RJ-45 Ethernet port. The XVR operates on DC 12V/2A with power consumption below 10W and comes with a 1-year manufacturing warranty.
