4MP 2K Pan & Tilt Network Camera with 10m IR Night Vision
1/3" Progressive CMOS, 2560×1440 Resolution & Up to 30fps
H.264/H.265 Compression, Adaptive Bit Rate & Auto IR-Cut Filter
| General | |
| Operating Temperature | -10°C to 45°C |
|---|---|
| Operating Humidity | 95% or Less, Non-Condensing |
| Power Supply | DC 5V / 2A |
| Power Consumption | Maximum 8W |
| Dimensions | 88 × 88 × 131.5 mm |
| Package Dimensions | 200 × 105 × 105 mm |
| Net Weight | 270g |
| Bare Weight | 499g |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Electronic Shutter Speed | Self-Adaptive Shutter |
| IR Distance | Up to 10 Meters (32.81 ft) |
| Lens | |
| Mount Type | M12 |
| Fixed Lens Viewing Angle | 108° Diagonal, 92° Horizontal, 50° Vertical |
| PT Lens Viewing Angle | 60° Diagonal, 51° Horizontal, 28° Vertical |
| Video | |
| Resolution | 2560 × 1440 |
| Frame Rate | Maximum 30fps, Self-Adaptive During Network Transmission |
| Day/Night | IR-Cut Filter with Auto-Switching |
| Video Compression | H.264 / H.265 |
| Video Bit Rate | Adaptive Bit Rate |
| Warranty | |
| Warranty | 1 Year |

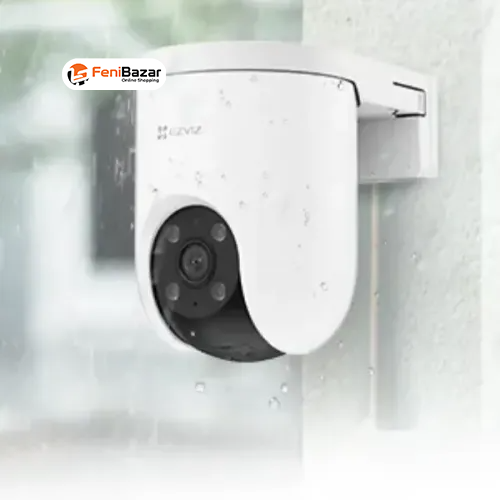

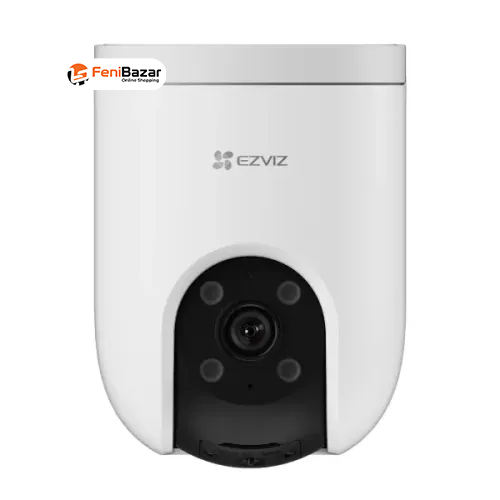

The EZVIZ 4MP Dual-Lens Pan & Tilt Wi-Fi Camera is designed to provide flexible surveillance with a 1/3" Progressive Scan CMOS image sensor and a maximum resolution of 2560 × 1440. Supporting up to 30fps with self-adaptive frame rate during network transmission, it delivers smooth and detailed video for everyday monitoring applications.
The camera features a dual-lens configuration with a fixed lens and a PT lens. The fixed lens provides a wide viewing angle of 108° diagonal, 92° horizontal, and 50° vertical, while the PT lens offers a 60° diagonal, 51° horizontal, and 28° vertical viewing angle. Both lenses use an M12 mount.
For day and night monitoring, the camera uses an IR-cut filter with automatic switching and supports infrared illumination up to 10 meters. Its self-adaptive shutter helps adjust image capture according to changing lighting conditions.
The camera supports H.264/H.265 video compression with adaptive video bitrate for efficient transmission. With a compact 88 × 88 × 131.5 mm design, 270g net weight, and DC 5V/2A power supply, it is suitable for various surveillance installations. The camera has a maximum power consumption of 8W and comes with a 1-year warranty.
