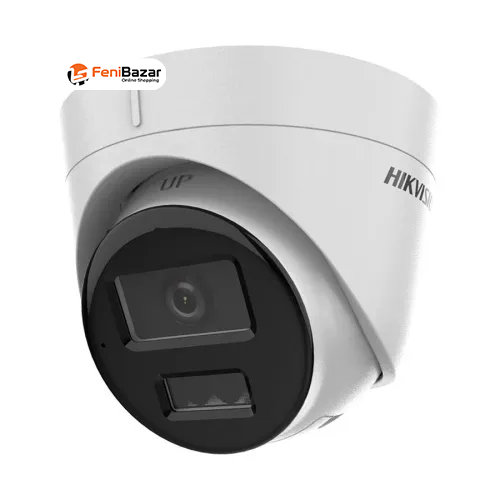

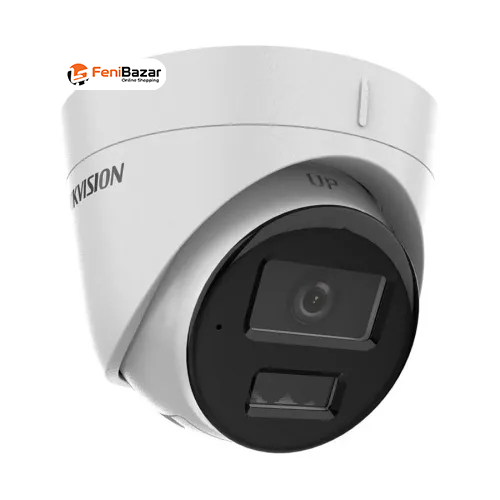

The 4MP 2K Color IP Camera is a high-resolution network surveillance camera designed to provide clear and detailed video monitoring. It features a 4MP 1/3" Progressive Scan CMOS sensor with an effective resolution of 2560 × 1440, delivering detailed 2K-quality images for security monitoring.
With 2560 × 1440 effective pixels, the camera captures more image detail than standard Full HD cameras. Its 1/3" Progressive Scan CMOS sensor provides high-resolution imaging, while the minimum illumination is 0.005 Lux in color at F1.6 with AGC ON and 0 Lux in black-and-white mode with IR.
The camera supports Color Day/Night operation, making it suitable for continuous color video monitoring.
The camera provides an IR distance of up to 30 meters, helping maintain visibility in low-light and nighttime conditions.
The camera is equipped with a 2.8mm fixed focal lens with an M12 mount and F1.6 maximum aperture.
The 2.8mm lens provides:
Horizontal FOV: 98°
Vertical FOV: 54°
Diagonal FOV: 114°
This wide field of view makes the camera suitable for monitoring broader areas.
The main stream supports 2560 × 1440 at up to 20fps. It also supports 1920 × 1080 and 1280 × 720 resolutions at the specified frame rates.
The sub-stream supports resolutions including 1280 × 720, 640 × 480, and 640 × 360, with frame rates depending on the selected 50Hz or 60Hz mode.
The camera supports mono sound and environment noise filtering. Its audio system supports 8kHz and 16kHz sampling rates and multiple compression formats:
G.711ulaw
G.711alaw
G.722.1
G.726
MP2L2
PCM
AAC-LC
Audio bitrate varies according to the selected compression format, supporting up to 160Kbps for MP2L2 and up to 64Kbps for AAC-LC.
The camera supports IEEE 802.3af Class 3 PoE, allowing power and network connectivity
