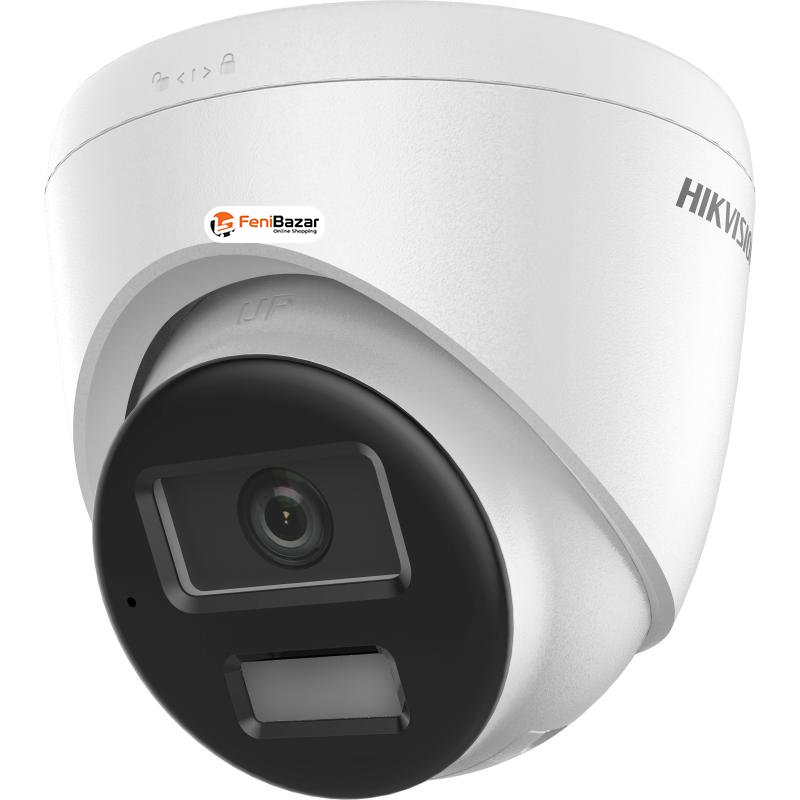

The 4MP PoE IP Camera is a professional network surveillance solution designed to deliver clear and detailed video monitoring with reliable day and night performance. It features a 1/3" Progressive Scan CMOS sensor with a maximum resolution of 2688 × 1520, providing high-quality 4MP images for security monitoring.
With a 4MP resolution of 2688 × 1520 and a 1/3" Progressive Scan CMOS sensor, the camera captures detailed surveillance footage. The F1.6 aperture and minimum illumination of 0.003 Lux in color mode help maintain image clarity in low-light environments.
The camera supports 120dB Wide Dynamic Range (WDR) to help maintain balanced images in scenes with both bright and dark areas. It also provides an SNR of ≥52dB, contributing to cleaner and more reliable image output.
An integrated IR cut filter with up to 30 meters of IR night vision provides monitoring capability in low-light and nighttime conditions. This helps maintain surveillance coverage even when ambient lighting is limited.
The camera features 1 built-in microphone and supports mono sound, allowing compatible surveillance systems to capture audio along with video. This adds useful audio information to security monitoring.
The camera supports intelligent motion detection with specified target types including humans and vehicles. It also supports video tampering alarms and exception detection, helping provide more effective event monitoring and security alerts.
The camera supports IEEE 802.3af Class 3 PoE, allowing both power and network connectivity to be delivered through a single Ethernet cable. It also supports 12VDC ±25% power input through a Ø5.5mm coaxial power plug.
For network connectivity, it features 1× RJ45 10/100M self-adaptive Ethernet port, making it suitable for standard IP surveillance network installations.
The camera uses a 2.8mm fixed focal lens with an M12 lens mount and F1.6 aperture. It provides a:
Horizontal FOV: 98°
Vertical FOV: 54°
Diagonal FOV: 115°
The camera also supports Pan 0°–360°, Tilt 0°–90°, and Rotate 0°–360° for flexible installation adjustment.
With an IP67 protection rating according to IEC 60529-2013, the camera provides protection against dust and water ingress, helping improve reliability in supported surveillance environments.
The camera measures 69.1 × 66.9 × 172.9mm and weighs approximately 280g, providing a compact design for installation. It operates on 12VDC ±25%, 0.55A with a maximum power consumption of 6.6W, while PoE operation has a maximum consumption of 8.0W.
4MP IP Camera
2688 × 1520 maximum resolution
1/3" Progressive Scan CMOS sensor
2.8mm fixed focal lens
M12 lens mount
F1.6 aperture
98° horizontal FOV
54° vertical FOV
115° diagonal FOV
Up to 30m IR night vision
120dB WDR
SNR ≥52dB
Minimum illumination: 0.003 Lux (Color)
1 built-in microphone
Mono sound
Human & vehicle target motion detection
Video tampering alarm
Exception detection
IEEE 802.3af Class 3 PoE
1× RJ45 10/100M Ethernet port
IP67 protection
Pan 0°–360°, Tilt 0°–90°, Rotate 0°–360°
12VDC power input
Maximum power consumption: 6.6W
Compact 69.1 × 66.9 × 172.9mm body
Approx. 280g weight
1-year warranty
This 4MP PoE IP Camera is suitable for network-based surveillance applications where high-resolution imaging, 30m IR night vision, wide-angle coverage, audio monitoring, human and vehicle motion detection, PoE connectivity, and IP67 protection are required.
Overall, the 4MP PoE IP Camera with 30m IR, 120dB WDR, built-in microphone, human & vehicle motion detection, and IP67 protection provides a practical combination of high-resolution video, night monitoring, audio capture, intelligent detection, and reliable network connectivity.
