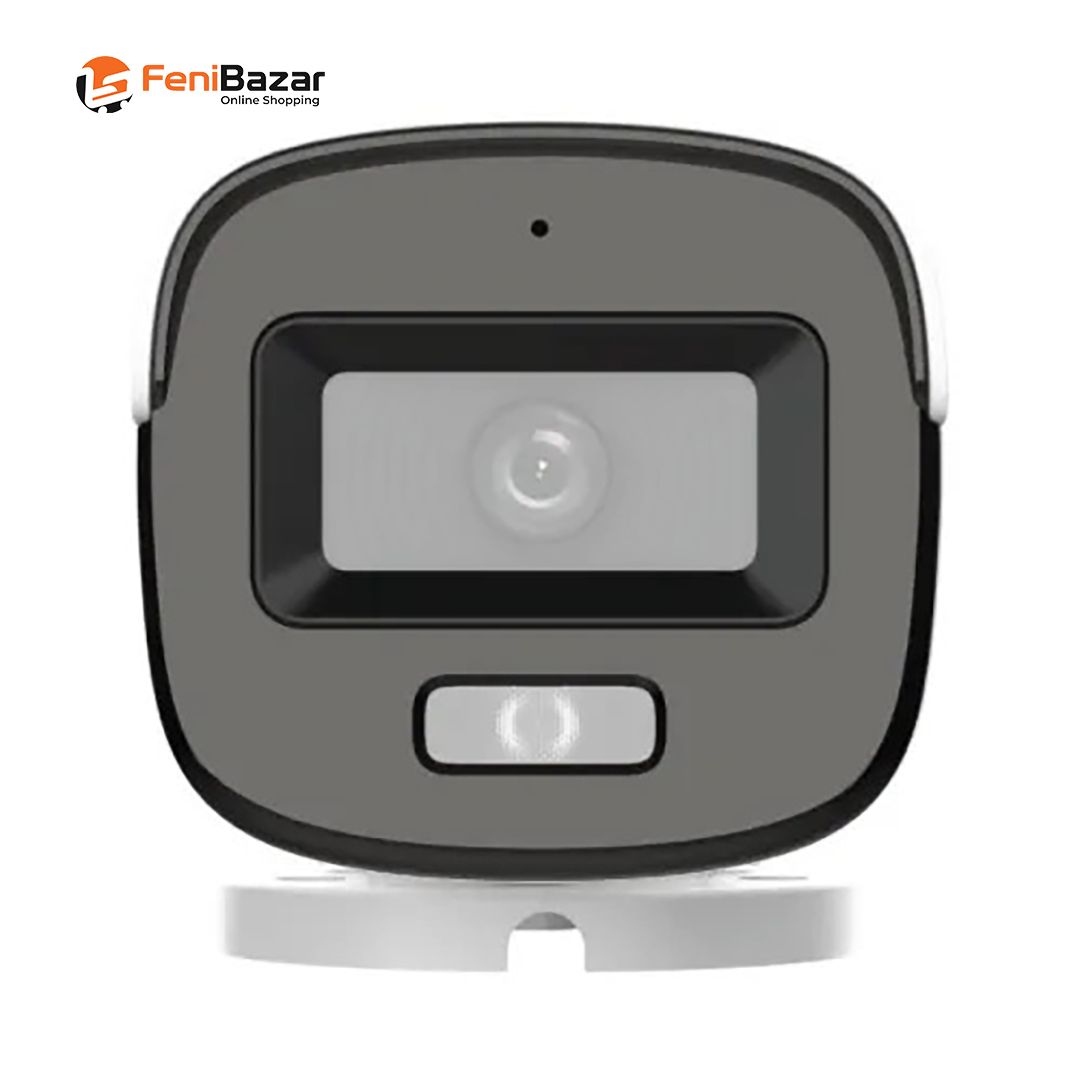

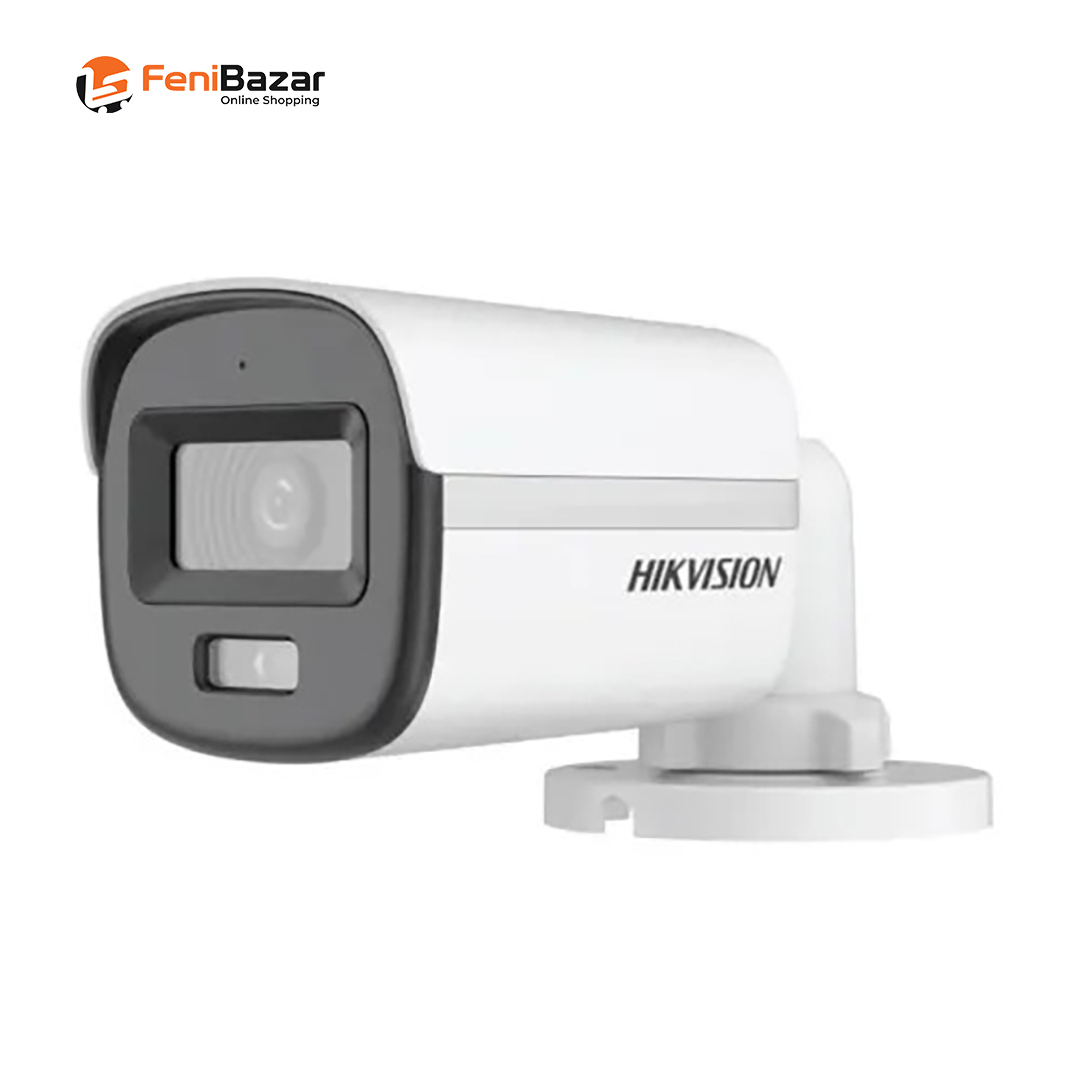

The Hikvision DS-2CE10DF0T-LPFS/S is a 2MP security camera designed to provide clear 1920 × 1080 Full HD video, smart supplementary lighting, and high-quality audio through a built-in microphone. With support for IR and white-light illumination up to 20 meters, the camera provides reliable visibility in low-light and dark environments.
It supports multiple analog video formats including TVI, AHD, CVI, and CVBS, making it suitable for compatible DVR-based CCTV systems.
The camera features a 2MP CMOS image sensor with a maximum resolution of 1920 × 1080, providing clear and detailed Full HD surveillance video.
It supports:
Resolution: 1920 × 1080
TVI: 1080P @ 25/30fps
CVI: 1080P @ 25/30fps
AHD: 1080P @ 25/30fps
CVBS: PAL/NTSC
The camera features both IR and white-light supplementary illumination, with each providing a range of up to 20 meters.
IR Light: Up to 20m
White Light: Up to 20m
Supplement Light Type: IR, White Light
The camera offers a minimum illumination of 0.001 Lux @ F1.0 with AGC ON and 0 Lux with white light, helping maintain visibility in very low-light conditions.
The camera supports 2.8mm and 3.6mm fixed focal lens options, allowing different viewing angles depending on the selected lens.
2.8mm Lens:
Horizontal FOV: 105°
Vertical FOV: 56°
Diagonal FOV: 126°
3.6mm Lens:
Horizontal FOV: 84°
Vertical FOV: 46°
Diagonal FOV: 98°
The lens uses an M12 mount.
A key feature of the DS-2CE10DF0T-LPFS/S is its built-in microphone and support for high-quality audio over coaxial cable.
This allows compatible CCTV systems to transmit audio together with video through the coaxial connection, providing additional information for surveillance monitoring.
The camera supports Digital Wide Dynamic Range (DWDR) and multiple image enhancement technologies to help improve image quality under different lighting conditions.
Supported image features include:
Digital WDR / DWDR
BLC
HLC
Global image enhancement
Auto/Manual White Balance
AGC
The camera supports 3D DNR and 2D DNR technology to help reduce image noise and improve video clarity, particularly in low-light surveillance environments.
The switchable TVI/AHD/CVI/CVBS interface provides compatibility with different analog HD CCTV systems.
Users can switch between supported video technologies according to the connected DVR and surveillance system requirements.
The camera provides flexible physical adjustment during installation:
Pan: 0° to 360°
Tilt: 0° to 90°
Rotation: 0° to 360°
This allows the camera to be positioned toward the required monitoring area.
The camera is designed to operate within a wide temperature range of -40°C to 60°C (-40°F to 140°F) with humidity of 90% or less, non-condensing.
It measures 161.1 × 68.4 × 65.2 mm and weighs approximately 235 g.
The camera operates on 12 VDC ±25% and has a maximum power consumption of 2.9W, providing efficient operation for CCTV surveillance installations.
Model: DS-2CE10DF0T-LPFS/S
2MP CMOS Image Sensor
1920 × 1080 Full HD Resolution
2.8mm / 3.6mm Fixed Focal Lens
2.8mm FOV: 105° Horizontal
3.6mm FOV: 84° Horizontal
M12 Lens Mount
IR Illumination up to 20m
**White-Light Illumination up to
