Hikvision DS-7104HGHI-M1/T 4-Channel HD-TVI DVR

Hikvision DS-7104HGHI-M1/T 4 Channel H.265 DVR

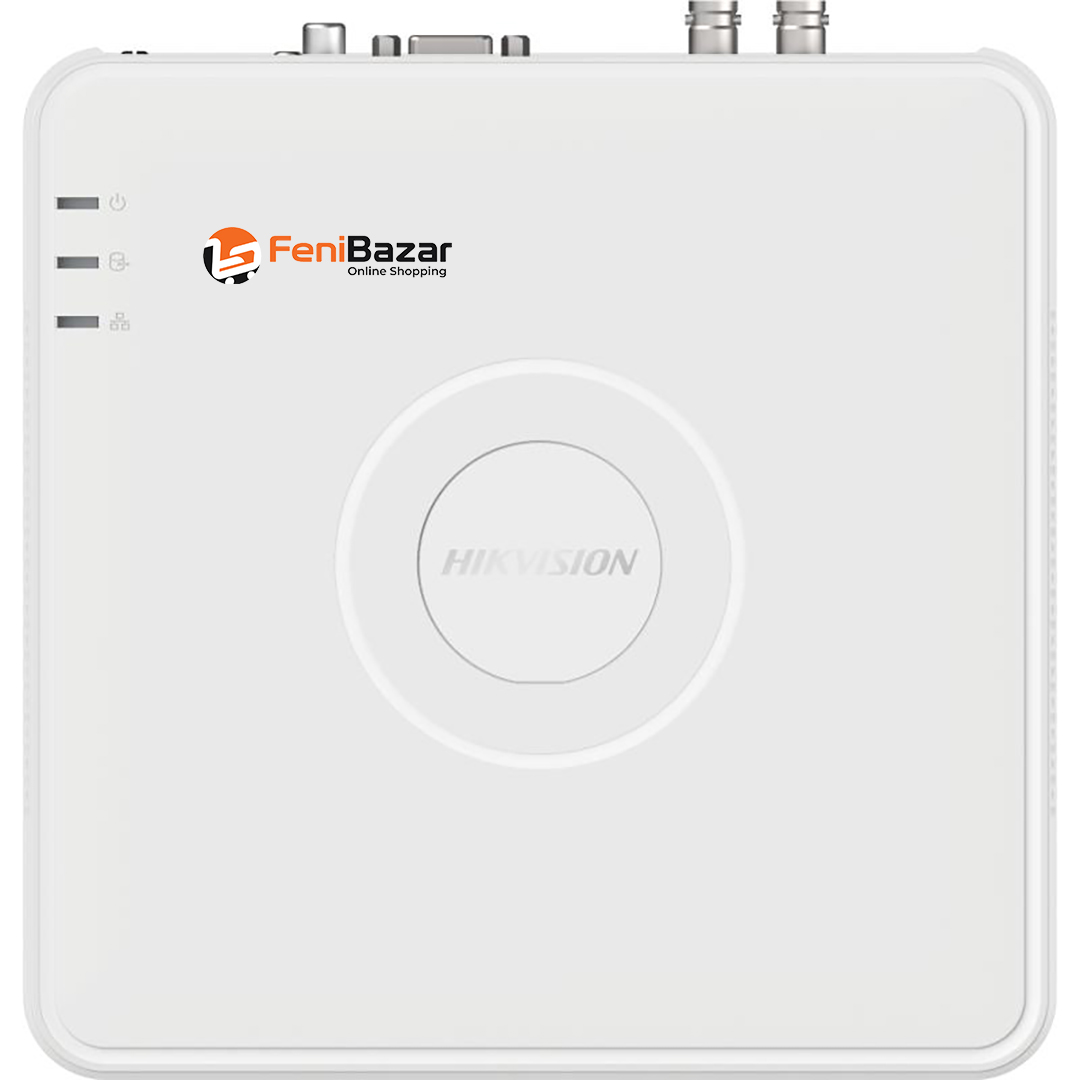

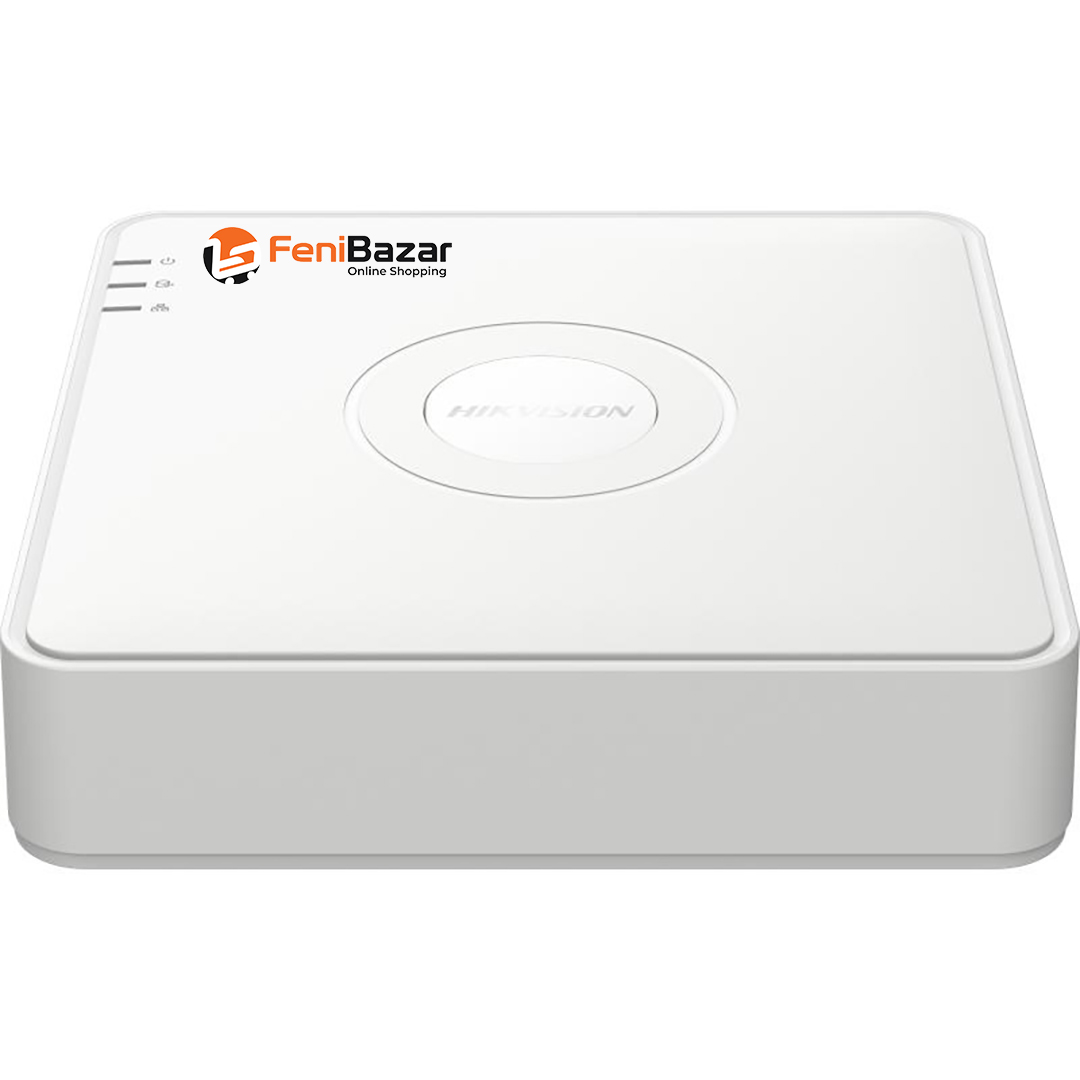

The Hikvision DS-7104HGHI-M1/T is a 4-channel HD DVR designed for CCTV recording, monitoring, playback, and network surveillance. It supports multiple video technologies including HDTVI, HDCVI, AHD, IP, and CVBS, making it suitable for different compatible CCTV camera systems.

4-Channel Video Input

The DVR features 4-channel BNC analog video inputs and supports HDTVI, AHD, HDCVI, and CVBS video signals. HDTVI, AHD, and HDCVI inputs support resolutions including 1080p and 720p at 25/30fps, depending on the selected format and camera.

Up to 5-Channel IP Camera Support

The DS-7104HGHI-M1/T supports up to 5-channel IP camera inputs with IP cameras up to 2MP resolution. Compatible IP cameras can use H.265+, H.265, H.264+, or H.264 compression.

H.265 Pro+ Video Compression

For efficient video recording, the DVR supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 compression. The supported video bit rate ranges from 32 Kbps to 4 Mbps.

HDTVI Two-Way Audio

The DVR supports HDTVI two-way audio technology on all channels, allowing compatible HDTVI cameras to provide two-way communication. It also features 1-channel RCA audio input and 1-channel RCA audio output.

Recording & Playback

The DS-7104HGHI-M1/T supports multiple recording resolutions including 1080p Lite, 720p Lite, WD1, 4CIF, VGA, and CIF, depending on the connected video stream.

The DVR supports 4-channel synchronous playback, allowing multiple camera recordings to be reviewed simultaneously.

HDD & USB Backup

The recorder provides 1 SATA interface with support for up to 4TB capacity for each disk. It also includes 2 × USB 2.0 ports on the rear panel for compatible USB devices and backup purposes.

HDD is not included unless separately specified.

HDMI & VGA Output

The DVR provides HDMI and VGA video outputs with simultaneous HDMI/VGA output support. Supported display resolutions include up
