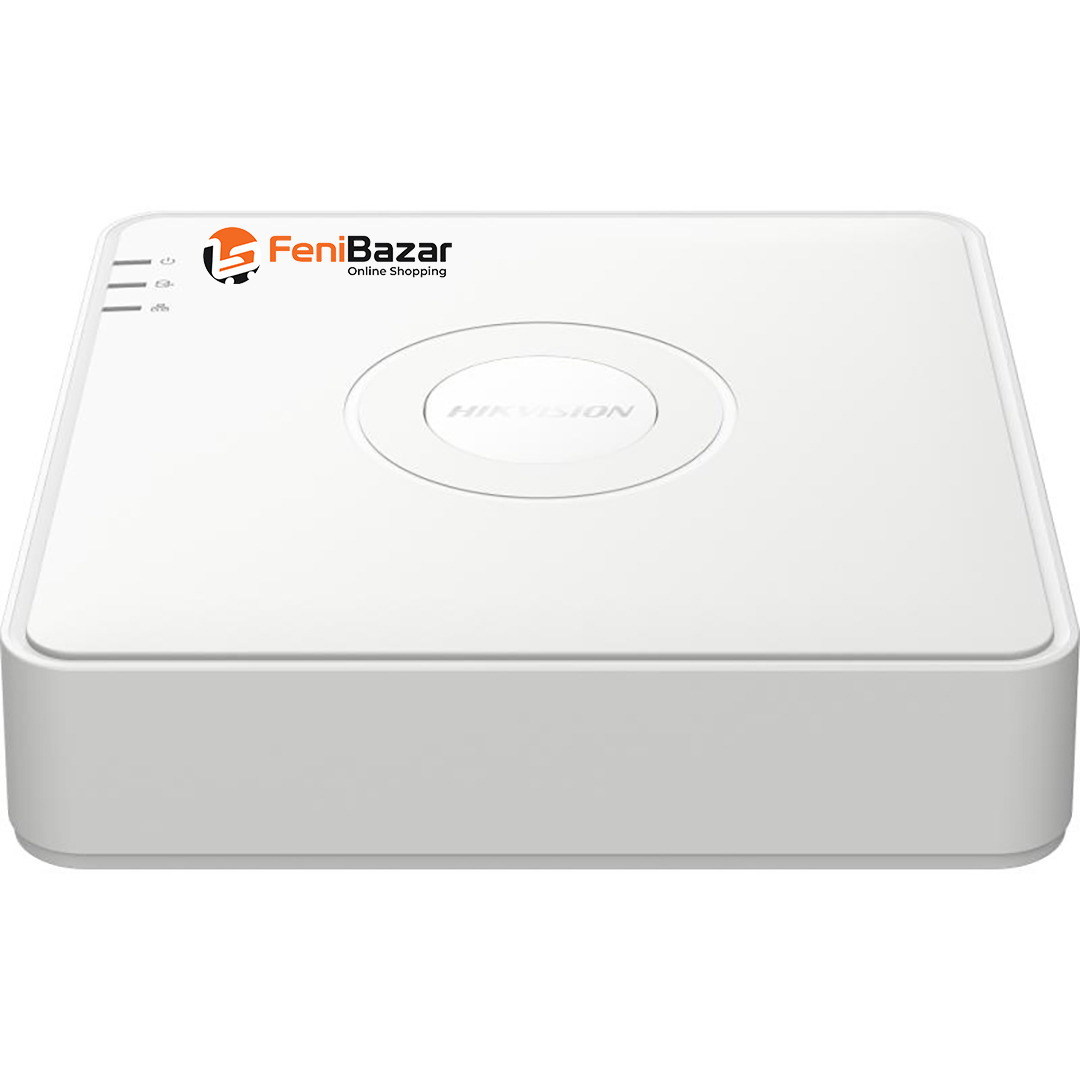

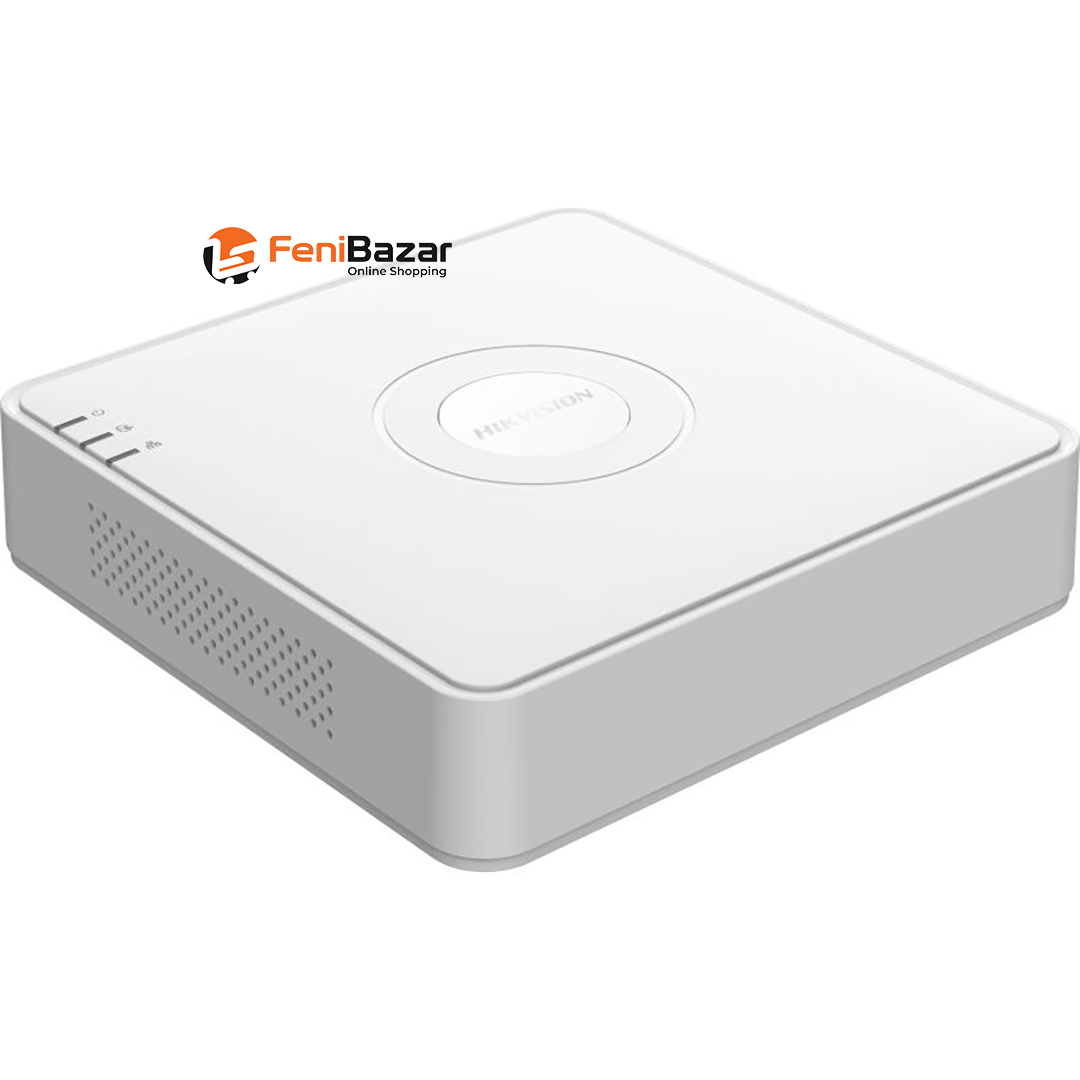

This 8-Channel H.265 DVR is designed for reliable CCTV recording, monitoring, playback, and network surveillance. It supports HDTVI, AHD, HDCVI, CVBS, and IP camera systems, making it suitable for a variety of compatible CCTV installations.
The DVR supports 2-channel IP camera input by default and up to 10-channel IP camera support, with IP cameras up to 1080p resolution. Compatible IP cameras can use H.265+, H.265, H.264+, or H.264 compression.
The recorder supports multiple analog HD video technologies, including:
HDTVI
AHD
HDCVI
CVBS
IP Camera
HDTVI, AHD, and HDCVI inputs support 1080p and 720p at 25/30fps, depending on the selected video format and connected camera.
The DVR supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression technologies. Supported recording bit rates range from 32 Kbps to 4 Mbps, helping manage video storage and network bandwidth requirements.
For 1080p stream access, supported recording resolutions include 1080p Lite, 720p Lite, WD1, 4CIF, VGA, and CIF. For 720p and SD stream access, additional resolution options are available.
The main stream supports up to 15fps for 1080p and 720p stream access, while SD recording can support up to 25fps (PAL) / 30fps (NTSC).
The DVR supports 8-channel synchronous playback, allowing multiple recorded camera channels to be reviewed simultaneously.
It also supports quick search by object or event type, helping users locate relevant recorded footage more efficiently.
The recorder supports Video and Video & Audio stream types with G.711u audio compression and a 64 Kbps audio bit rate.
The DVR features both HDMI and VGA outputs. Supported display resolutions include:
1920 × 1080 @ 60Hz
1280 × 1024 @ 60Hz
1280 × 720 @ 60Hz
The recorder features 1 SATA interface and supports up to 4TB capacity for each disk. It also provides 2 × USB 2.0 ports for compatible external USB devices and backup functions.
HDD is not included unless separately specified.
The DVR
