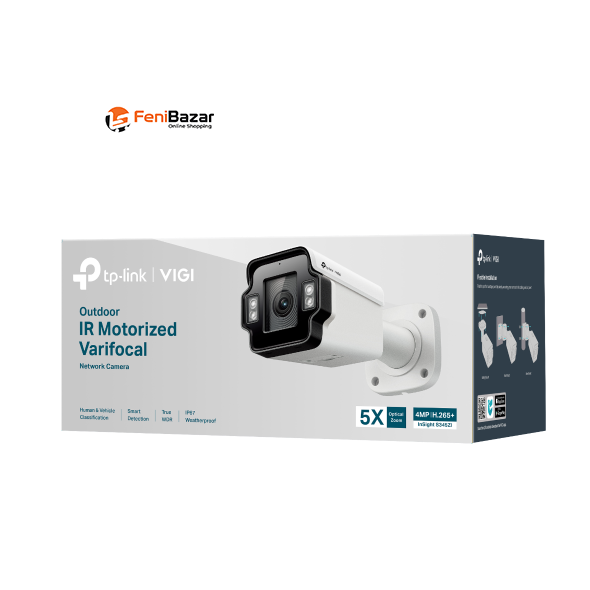

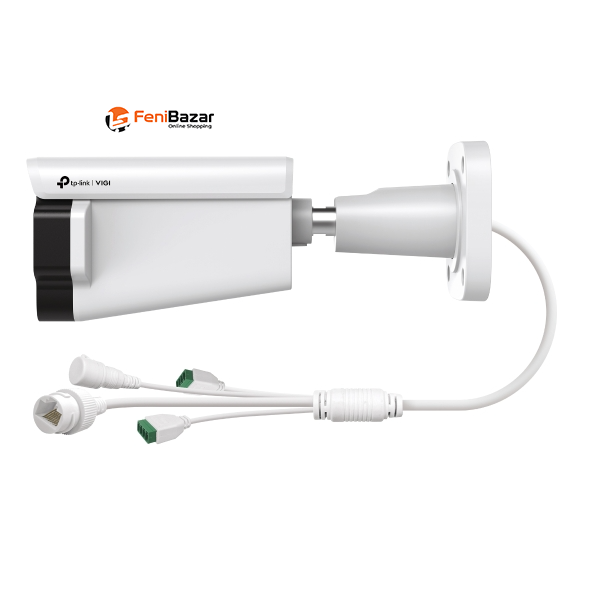

4MP 5X Motorized Varifocal PoE IP Camera with 60m IR
2.7–13.5mm F1.6 Lens, 120dB WDR & SmartIR
Human & Vehicle Detection, Two-Way Audio, 512GB MicroSD, IP67 & IK10
| Camera | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
|---|---|
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| Lens | |
| Lens Type | Motorized Varifocal Lens |
| Focal Length | 2.7–13.5mm |
| Optical Zoom | 5X |
| Aperture | F1.6 |
| Lens Mount | Φ14 |
| FOV | Horizontal 29.6°–102.0°, Vertical 16.8°–53.8°, Diagonal 34.1°–122.8° |
| DORI Distance | Detect 66–207m, Observe 28–86m, Recognize 13–41m, Identify 7–21m |
| Manual Angle Adjustment | |
| Pan | 0° to 360° |
| Tilt | 0° to 90° |
| Rotation | 0° to 360° |
| Illuminator | |
| IR LED | 4 LEDs |
| IR Illumination Range | Up to 60m |
| IR Wavelength | 850nm |
| Illuminator Control | Auto / Scheduled / Always On / Always Off |
| Video | |
| Maximum Resolution | 2688 × 1520 |
| Main Stream Resolution | 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080 |
| Main Stream Frame Rate | Up to 25fps at 50Hz; up to 30fps at 60Hz |
| Sub-Stream Resolution | 1280×720, 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 |
| Sub-Stream Frame Rate | Up to 25fps at 50Hz; up to 30fps at 60Hz |
| Bit Rate Control | CBR / VBR |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream Compression | H.265 / H.264 |
| H.264 Profile | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Profile | Main Profile |
| H.265+ | Main Stream Supported |
| Main Stream Bit Rate | 256 Kbps to 6 Mbps |
| Sub-Stream Bit Rate | 512 Kbps to 1024 Kbps |
| Frame Rate Limitation | Up to 20fps when image rotation is set to 90° or 270° |
| Image | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance |
| Image Enhancement | BLC / 3D DNR / HLC / SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Additional Features | Infrared Overexposure Prevention, Adjustable HLC |
| Audio | |
| Audio Communication | One-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Supported |
| Audio Sampling Rate | 8KHz |
| Audio Bit Rate | 64 Kbps (G.711 A-law) |
| Environment Noise Filtering | Yes |
| Built-in Microphone | Yes |
| Built-in Speaker | N/A |
| Network | |
| Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| PoE | Supported |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Supported |
| ONVIF Profile | S / T / G |
| Simultaneous Live View | 3 Main Streams + 3 Sub-Streams |
| Client Platforms | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Cloud | Supported |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Smart Detection | |
| Intrusion Detection | Supported |
| Line-Crossing Detection | Supported |
| Region Entering Detection | Supported |
| Region Exiting Detection | Supported |
| Object Abandoned Detection | Supported |
| Object Removal Detection | Supported |
| Loitering Detection | Supported |
| People Detection | Supported |
| Vehicle Detection | Supported |
This VIGI 4MP motorized varifocal network camera features a 1/2.9" Progressive Scan CMOS sensor and delivers up to 2688 × 1520 resolution for detailed surveillance. Its 2.7–13.5mm motorized varifocal lens provides 5X optical zoom, allowing flexible adjustment of the viewing angle from wide-area monitoring to longer-distance observation.
The camera is equipped with 4 IR LEDs providing up to 60m night illumination. It supports 120 dB WDR, BLC, 3D DNR, HLC, and SmartIR to help maintain clear and balanced images in different lighting conditions. Manual adjustment supports 360° pan, 90° tilt, and 360° rotation.
For intelligent monitoring, the camera supports intrusion, line-crossing, region entering/exiting, abandoned/removal object, loitering, people, vehicle, abnormal sound, and scene change detection. Motion detection can use Human & Vehicle Classification for more accurate alerts, with alarm linkage including memory card recording, message push, email alerts, FTP capture upload, and alarm output.
The camera supports one-way audio with audio input and output, along with a 10/100M RJ45 Ethernet port and PoE. MicroSD storage up to 512GB, ONVIF Profile S/T/G, VIGI software platforms, cloud connectivity, IP67 weatherproof protection, and IK10 vandal resistance make it suitable for demanding surveillance installations.
