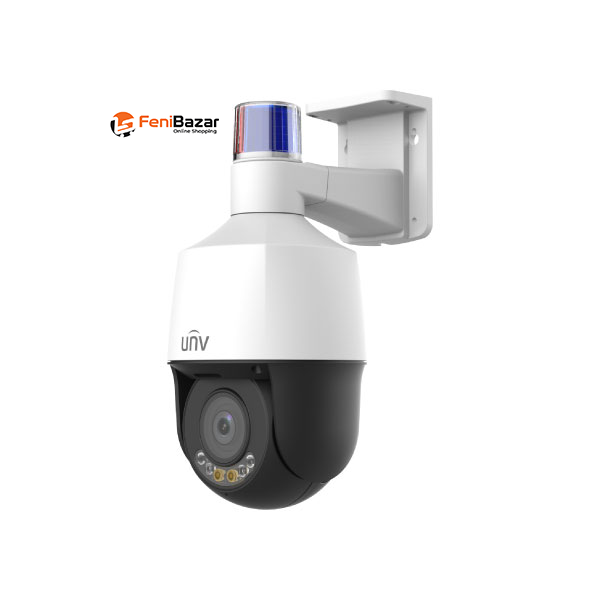

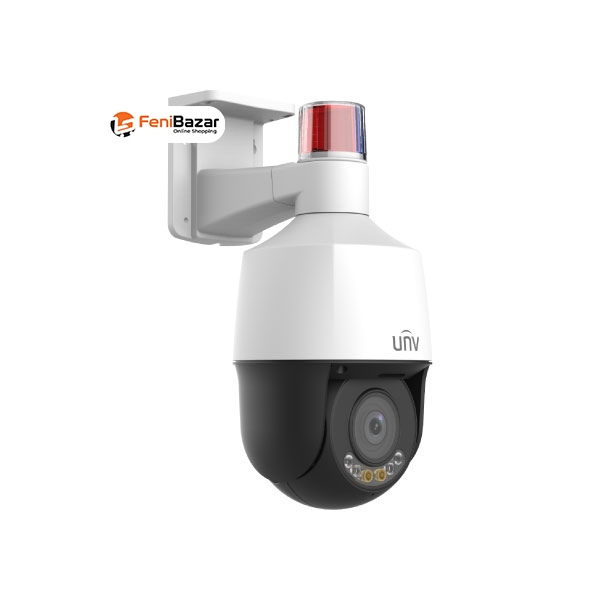

The Uniview IPC6325LFW-AX5C-VG is a high-performance 5MP PTZ IP Camera featuring a 1/2.7" CMOS sensor, 5MP resolution, and a motorized 2.7–13.5mm lens with 5X optical zoom. It is designed for advanced surveillance applications requiring wide-area coverage, intelligent detection, PTZ control and detailed monitoring at longer distances.
The camera delivers up to 5MP (2880 × 1620) resolution at 30fps and features a 2.7–13.5mm focal length with 5X optical zoom. Its F1.2 aperture and 0.005 Lux colour illumination provide improved imaging performance in low-light conditions.
The lens offers a horizontal field of view ranging from 106.9° to 30.6°, allowing both wide-area monitoring and closer views of distant subjects.
With 120dB WDR, the camera is designed to maintain clearer image details in scenes with significant differences between bright and dark areas. Additional image enhancement features include 2D/3D DNR, Smart IR, HLC, BLC and Digital Defog.
The IPC6325LFW-AX5C-VG supports both IR and warm-light illumination. Its IR illumination reaches up to 50 meters, while the warm light provides illumination up to 15 meters. Light control can be configured for automatic or manual operation, with an 850nm wavelength for the IR illumination.
The camera supports Auto Tracking with human-only target filtering, helping the PTZ camera automatically track relevant human targets.
Its Smart Intrusion Prevention features include:
Cross-line detection
Intrusion detection
Enter-area detection
Leave-area detection
False-alarm filtering
Human classification
Non-motor vehicle classification
Vehicle classification
The camera supports people flow counting and crowd density detection, providing additional monitoring capabilities for areas where movement and occupancy analysis are important.
It also supports exception detection including:
Object removed detection
Object left behind detection
Scene change detection
Defocus detection
The IPC6325LFW-AX5C-VG supports Ultra265, H.265, H.264 and MJPEG video compression and provides triple video streams.
The main stream supports 5MP (2880 × 1620) at up to 30fps, while the sub stream supports 720P and the third stream supports D1, both at up to 30fps.
The camera also supports ROI, U-code, privacy masking and up to 8 OSDs, with a video bitrate range of 128 Kbps to 16 Mbps.
The camera supports two-way audio with G.711U/G.711A audio compression, a 128 Kbps audio bitrate and 16 kHz sampling rate.
It features both a built-in microphone and built-in speaker, along with 1 audio input and 1 audio output, enabling two-way voice communication through compatible surveillance systems.
The camera provides extensive PTZ control with:
1024 presets
16 preset patrols
Up to 64 presets per patrol
Home position support
Pan range: 0° to 345°
Tilt range: -10° to 100°
Pan speed: 1°/s to 50°/s
Tilt speed: 1°/s to 40°/s
Patrol stay time: 120–1800 seconds
These features allow the camera to monitor multiple predefined areas through programmed PTZ movements.
The camera supports MicroSD cards up to 512GB for edge storage and supports ANR and NAS (NFS) for network storage.
For integration with compatible surveillance platforms, it supports ONVIF Profile S, G, T and M, as well as API and SDK. Network connectivity is provided through 1 × RJ45 10/100M Base-TX Ethernet port.
The IPC6325LFW-AX5C-VG supports PoE IEEE 802.3at as well as DC 12V (±25%) power input. Its maximum power consumption is 18W.
The camera features an IP66 protection rating, operates from -30°C to 60°C, and provides 2KV surge protection for improved reliability in demanding installation environments.
With its 2.7–13.5mm motorized lens and 5X optical zoom, the camera provides the following DORI distances:
Detect: 70.9m to 247.5m
Observe: 28.4m to 99.0m
Recognize: 14.2m to 49.5m
Identify: 7.1m to 24.8m
5MP PTZ IP Camera
1/2.7" CMOS sensor
5MP 2880 × 1620 resolution up to 30fps
2.7–13.5mm motorized lens
5X optical zoom
F1.2 aperture
120dB WDR
50m IR illumination
15m warm-light illumination
850nm IR wavelength
Smart IR
Auto Tracking with human-only target filtering
Smart Intrusion Prevention
People flow counting & crowd density detection
Object removed / left behind detection
Scene change & defocus detection
Ultra265 / H.265 / H.264 / MJPEG
Triple video streams
ROI & U-code
Built-in microphone & speaker
Two-way audio
MicroSD up to 512GB
ONVIF Profile S/G/T/M
API & SDK support
1024 presets
16 preset patrols
PoE IEEE 802.3at
IP66 protection
2KV surge protection
DORI identification distance up to 24.8m
The Uniview IPC6325LFW-AX5C-VG is suitable for advanced surveillance environments requiring PTZ monitoring, long-distance viewing, optical zoom, intelligent human/vehicle detection, people counting and two-way audio. Its combination of 5MP imaging, 5X optical zoom, 50m IR, 15m warm light, auto tracking and extensive PTZ control makes it suitable for monitoring large or multi-area surveillance zones.
Overall, the IPC6325LFW-AX5C-VG combines 5MP imaging, 5X optical zoom, 120dB WDR, 50m IR, 15m warm light, intelligent tracking, people counting, triple-stream video, two-way audio, MicroSD storage, PoE and IP66 protection in a feature-rich PTZ network surveillance camera.
