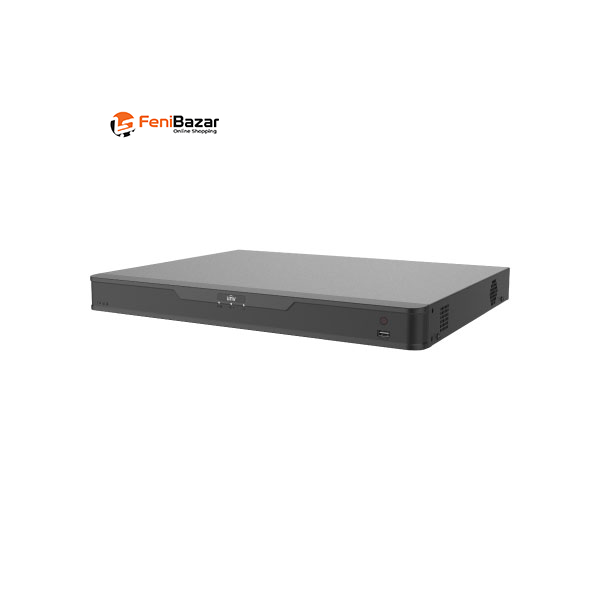

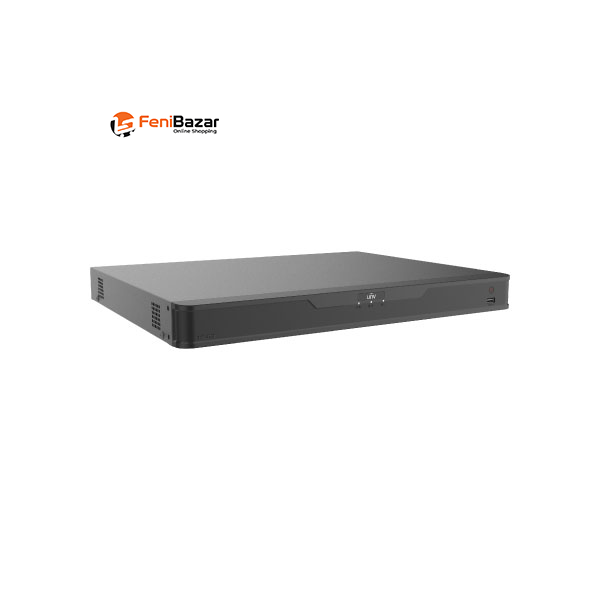

This 32-Channel 12MP NVR is a high-capacity network video recorder designed for IP surveillance systems requiring multiple camera inputs, high-resolution recording, advanced video analytics, and efficient network performance. It supports 32-channel IP video input, recording resolutions up to 12MP, and Ultra 265, H.265, and H.264 decoding formats.
The NVR provides 160Mbps incoming bandwidth and 128Mbps outgoing bandwidth, along with support for up to 128 remote users. It also features 4K HDMI output, 32-channel live-view display, 16-channel synchronous playback, dual Gigabit Ethernet interfaces, and dual SATA storage support.
The NVR supports 32-channel IP video input and recording resolutions from 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, 2CIF to CIF.
Its decoding format supports:
Ultra 265
H.265
H.264
Each decoding channel supports a maximum resolution of 8192 pixels in length × 4096 pixels in width.
With Smart Off, the NVR supports:
2 × 12MP @ 30fps
2 × 4K @ 30fps
4 × 4MP @ 30fps
10 × 1080P @ 30fps
20 × 720P @ 30fps
32 × D1
With Smart On, the decoding capability includes:
2 × 4K @ 30fps
4 × 4MP @ 30fps
8 × 1080P @ 30fps
16 × 720P @ 30fps
32 × D1
This provides flexible decoding performance depending on the Smart mode configuration.
The NVR features an HDMI output supporting 4K resolution (3840 × 2160) at 30Hz. VGA output supports up to 1920 × 1080 at 60Hz.
Supported live-view layouts include:
1/4/6/8/9/16/25/32-screen display
The NVR also supports Corridor Mode configurations of:
3/4/5/7/9/10/12/16/32
For reviewing recorded footage, the NVR supports 16-channel synchronous local playback, allowing multiple camera channels to be played back simultaneously.
The NVR supports advanced smart functions through connected IP cameras and NVR-based detection.
Supported VCA functions include:
Face Detection
Vehicle Detection
Intrusion Detection
Cross Line Detection
Enter Area Detection
Leave Area Detection
Ultra Motion Detection (UMD)
People Flow Counting
Crowd Density Monitoring
Traffic Monitoring
The VCA Search functions include:
Motor Vehicle Search
Non-Motor Vehicle Search
Human Body Search
General Search
People Counting Report
Heat Map
AcuSearch
The NVR itself supports:
Face Detection
Smart Intrusion Prevention (SIP)
Ultra Motion Detection (UMD)
2-Channel SIP by NVR
4-Channel UMD by NVR
The system supports up to 5 vehicle picture libraries with a total capacity of up to 25,000 vehicle pictures, providing organized storage for vehicle-related surveillance images.
The NVR provides 1-channel RCA audio input and 1-channel RCA audio output. Two-way audio is supported through the RCA audio input and output.
Audio compression supports G.711A and G.711U.
