The Uniview XVR301-08F is an 8-channel XVR designed for video surveillance systems requiring flexible analog and IP camera support. It supports IP camera input with up to 6MP resolution per channel and provides decoding capacity for both analog and IP video sources.
The XVR301-08F supports 2 IP camera inputs with support for up to 10 IP channels, with each IP channel supporting up to 6MP resolution. Its decoding capacity supports up to 8× 1080P Lite @15fps or 8× 720P @15fps for analog sources, while IP decoding supports 1× 6MP @20fps or 2× 1080P @30fps.
For display connectivity, the XVR features 1× HDMI and 1× VGA output. It supports display resolutions including 1080P Lite, 720P and D1, allowing the surveillance system to be connected to a compatible monitor or display.
The XVR supports recording at 1080P Lite @15fps and 720P @15fps on the main stream. Sub-stream recording supports D1 @12fps for 1080P Lite recording and D1 @15fps for 720P recording.
The XVR provides USB backup functionality and includes 2× USB 2.0 interfaces. Network connectivity is provided through 1× RJ45 network interface, making it suitable for network-based surveillance management and connectivity.
The device features eSATA storage support with capacity of up to 6TB for each HDD. This provides storage expansion capability for surveillance recording requirements.
The XVR supports an 8KHz, 16-bit audio sample rate per channel and an audio bitrate of 64Kbps per channel, allowing compatible surveillance setups to record audio alongside video.
The XVR301-08F operates on DC12V/2A power and consumes ≤10W without HDD, helping maintain efficient power usage. Its compact chassis measures 190 × 202 × 42mm and has a gross weight of ≤0.6kg.

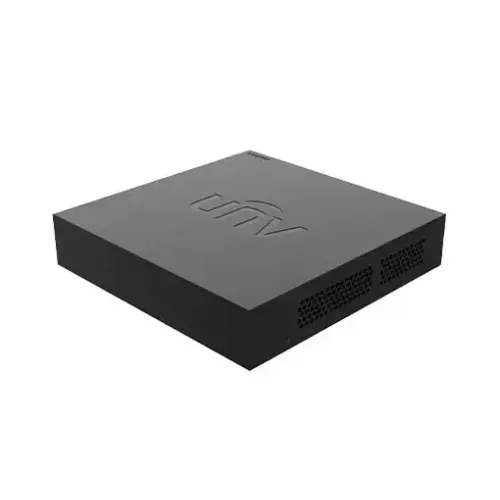

Uniview XVR301-08F 8-Channel XVR
2 IP camera inputs with support for up to 10 IP channels
Up to 6MP IP camera support per channel
Analog decoding up to 8× 1080P Lite @15fps
Analog decoding up to 8× 720P @15fps
IP decoding up to 1× 6MP @20fps
IP decoding up to 2× 1080P @30fps
1× HDMI and 1× VGA video output
1080P Lite / 720P / D1 display resolution
1080P Lite and 720P recording
USB backup support
2× USB 2.0 ports
1× RJ45 network interface
eSATA support up to 6TB for each HDD
8KHz, 16-bit audio sampling
64Kbps audio bitrate per channel
DC12V/2A power supply
≤10W power consumption without HDD
190 × 202 × 42mm compact design
1-year manufacturing warranty
The Uniview XVR301-08F is suitable for:
Home and small business surveillance
Office security systems
Retail shop monitoring
Commercial premises
Warehouse surveillance
Multi-camera CCTV installations
Systems requiring both analog and IP camera support
Overall, the Uniview XVR301-08F provides an 8-channel surveillance recording solution with up to 6MP IP camera support, HDMI/VGA output, USB backup, network connectivity and expandable eSATA storage, making it suitable for a range of CCTV monitoring and recording applications.
