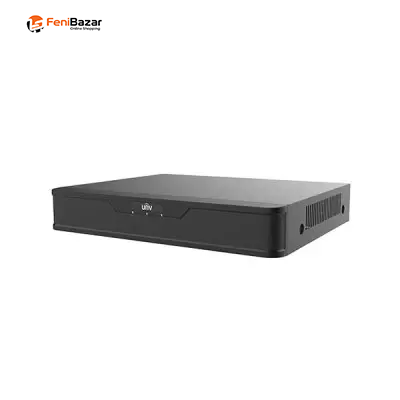

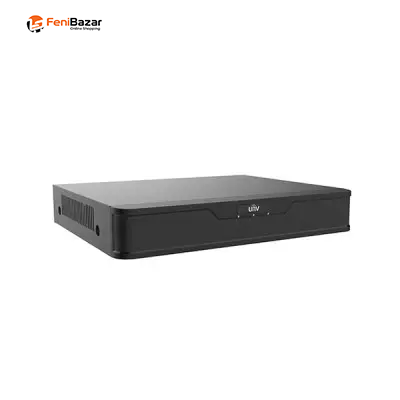

Uniview XVR301-04Q3 4-Channel 1-SATA XVR with 8MP Lite Recording
8-Channel BNC Analog Input, Up to 12 IP Channels & 8MP IP Support
4K HDMI, 1080P VGA, 8-Channel Playback, 4 Alarm Inputs & 8TB HDD
| General Information | |
| Brand | Uniview |
|---|---|
| Model | XVR301-04Q3 |
| Type | 4-Channel 1 SATA XVR |
| Warranty | 1-Year Brand Warranty |
| Certifications | UL / CE / FCC / RoHS / WEEE |
| Storage | |
| SATA Interface | 1 SATA |
| Maximum HDD Capacity | Up to 8TB per HDD |
| HDD Capacity Note | Maximum capacity varies with environmental temperature |
| Video Input | |
| Analog Video Input | 8-ch, BNC |
| IP Video Input | 4-ch |
| Maximum IP Channels | Up to 12-ch |
| Maximum IP Camera Resolution | Up to 8MP per channel |
| Supported Analog Camera Types | |
| AHD | 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps |
| TVI | 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps |
| CVI | 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps |
| CVBS | Supported |
| Recording | |
| Recording Resolution | 8MP Lite / 5MP Lite / 4MP Lite / 1080P / 720P / CIF |
| Main Stream | 8MP Lite@8fps / 5MP Lite@12fps / 4MP Lite@15fps / 1080P@15fps / 720P@30fps |
| Sub Stream | D1@8fps / D1@12fps / D1@15fps / D1@15fps / D1@30fps |
| Synchronous Playback | 8-ch |
| Snapshot | 8-ch, up to 704 × 576 resolution |
| Live View Display | HDMI/VGA: 1 / 4 / 6 / 8 / 9 / 16 |
| Video Output | |
| CVBS Output | 1-ch, BNC |
| VGA Output | Up to 1920 × 1080p |
| HDMI Output | Up to 3840 × 2160 @ 30Hz |
| HDMI Supported Resolutions | 3840 × 2160@30Hz, 1920 × 1080p@60/50Hz, 1600 × 1200@60Hz, 1280 × 1024@60Hz, 1280 × 720@60Hz, 1024 × 768@60Hz |
| Audio | |
| Audio Compression | G.711U |
| Audio Input | 1-ch, RCA |
| Audio Output | 1-ch, RCA |
| Two-Way Audio | 1-ch, RCA |
| Audio Sample Rate | 8KHz, 16 bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Performance | |
| Analog Capability | 8 × 8MP Lite@8fps, 8 × 5MP Lite@12fps, 8 × 4MP Lite@15fps, 8 × 1080P@15fps |
| IP Capability | 1 × 8MP@30fps, 2 × 4MP@30fps, 4 × 1080P@30fps |
| Incoming Bandwidth | 40Mbps |
| Incoming Bandwidth with All-Analog Conversion | Up to 56Mbps |
| Outgoing Bandwidth | 64Mbps |
| Network | |
| Network Interface | 1 × RJ45 10M/100M self-adaptive Ethernet |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Remote Users | Up to 128 |
| Web Browser Support | IE10/11, Firefox 52+, Chrome 45+, Edge 79+ for Windows |
| Detection & Alarm | |
| General Alarm | Motion detection |
| VCA Detection | Ultra Motion Detection (UMD), 8-ch analog |
| VCA Search | Behavior Search |
| Alert Alarms | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Low HDD Space, HDD Full, Recording/Snapshot Abnormal |
| Alarm Input | 4-ch |
| Alarm Output | 1-ch |
| Interfaces | |
| USB | 2 × USB 2.0, rear panel |
| RS485 | 1 |
| Audio Input | 1 × RCA |
| Audio Output | 1 × RCA |
| Power | |
| Power Supply | 12V DC |
| Power Consumption | ≤10W without HDD |
| Physical Specification | |
| Dimensions | 260 × 226 × 47mm |
| Weight | ≤1.1kg |
| Working Temperature | -10°C to +55°C |
| Working Humidity | ≤90% RH, non-condensing |
The Uniview XVR301-04Q3 is a 4-channel 1 SATA XVR designed for flexible CCTV surveillance systems. It supports AHD, TVI, CVI, and CVBS analog cameras, along with IP camera access, making it suitable for upgrading existing analog installations while adding network-based surveillance capabilities.
The recorder features 8-channel BNC analog video inputs and supports up to 4 IP channels, with expansion to up to 12 IP channels and support for IP cameras up to 8MP per channel. Analog camera support includes resolutions up to 8MP Lite, with different frame-rate options depending on the camera technology.
For monitoring and recording, the XVR301-04Q3 provides HDMI output up to 4K at 30Hz, VGA output, and CVBS output. It supports up to 8-channel synchronous playback and provides 8-channel snapshot capability. The recorder also includes 1-channel RCA audio input, audio output, and two-way audio support.
With 1 SATA interface supporting up to 8TB HDD capacity, 40Mbps incoming bandwidth, 64Mbps outgoing bandwidth, motion detection, Ultra Motion Detection (UMD), behavior search, and multiple network protocols, the Uniview XVR301-04Q3 offers a practical solution for home, office, shop, and other CCTV surveillance installations.
