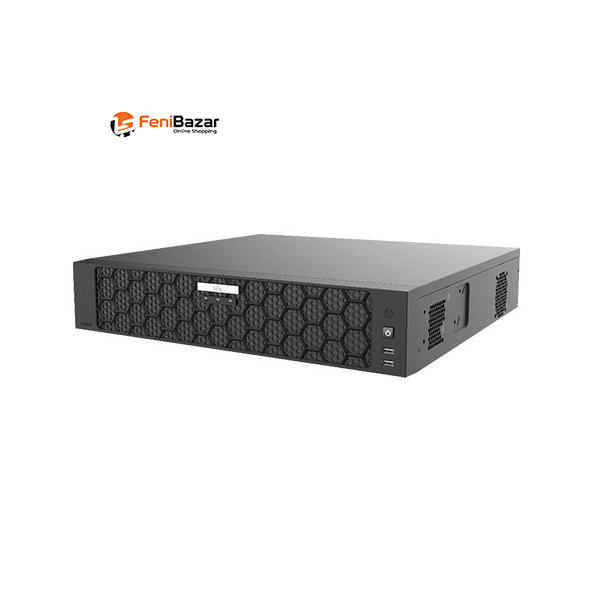

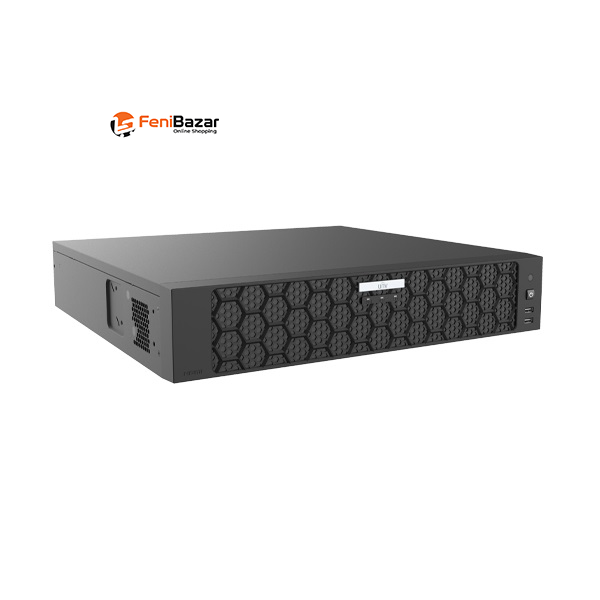

This 16/32/64-Channel NVR is a high-capacity network video recorder designed for professional IP surveillance systems. It supports Ultra 265, H.265, and H.264 video formats and is available with 16, 32, or 64-channel IP camera input, providing flexible options for different surveillance requirements.
The NVR supports mainstream IP cameras compliant with ONVIF Profile S, Profile G, and Profile T, as well as RTSP protocols, allowing compatibility with a wide range of network cameras.
The NVR supports recording at resolutions of up to 16 Megapixels, making it suitable for high-resolution IP surveillance applications where detailed video recording is required.
The recorder features 8 SATA HDD interfaces, with support for up to 12TB per HDD.
With eight 12TB HDDs installed, the total theoretical storage capacity can reach up to 96TB.
The NVR supports N+1 Hot Spare, providing an additional recorder-based redundancy option designed to improve system reliability and continuity in professional surveillance deployments.
The recorder supports ANR (Automatic Network Replenishment) technology, which helps enhance storage reliability when the network connection between the camera and NVR is disconnected.
When network communication is interrupted, ANR technology can help maintain recording continuity by using supported camera-side storage and subsequently replenishing the missing video data when the network connection is restored.
The NVR supports independent VGA and HDMI video outputs, allowing different display configurations for surveillance monitoring.
For the NVR508-64B, simultaneous output is provided by default, while independent output can be configured.
The NVR supports mainstream cameras conforming to:
ONVIF Profile S
ONVIF Profile G
ONVIF Profile T
RTSP Protocol
This provides flexible integration with compatible IP cameras and network surveillance devices.
The NVR supports cloud upgrade, providing a convenient method for updating the recorder's supported software or firmware through a network-based upgrade process.
16/32/64-Channel IP Camera Input
Ultra 265 / H.265 / H.264 Video Formats
Up to 16MP Recording Resolution
ONVIF Profile S/G/T Support
RTSP Protocol Support
VGA & HDMI Independent Output
NVR508-64B Simultaneous Output by Default
Independent Output Configurable on NVR508-64B
8 × SATA HDD Interfaces
Up to 12TB per HDD
Up to 96TB Total Storage with 8×12TB HDDs
N+1 Hot Spare Support
ANR Technology
Cloud Upgrade Support
| Specification | Details |
|---|---|
| Product Type | Network Video Recorder |
| Channel Options | 16 / 32 / 64 Channels |
| Video Formats | Ultra 265, H.265, H.264 |
| Maximum Recording Resolution | Up to 16MP |
| IP Camera Compatibility | Mainstream ONVIF-compliant cameras |
| ONVIF Profiles | Profile S, Profile G, Profile T |
| RTSP | Supported |
| Video Output | VGA & HDMI |
| Output Mode | Independent output supported |
| NVR508-64B Output | Simultaneous output by default; independent output configurable |
| SATA Interfaces | 8 |
| HDD Capacity | Up to 12TB per HDD |
| Maximum Storage | Up to 96TB with 8×12TB HDDs |
| Hot Spare | N+1 Hot Spare |
| ANR | Supported |
| Cloud Upgrade | Supported |
This 16/32/64-Channel 16MP NVR is suitable for professional and large-scale IP surveillance systems that require high-resolution recording, extensive HDD storage, multi-channel camera support, ONVIF interoperability, redundancy, and improved recording reliability during network interruptions.
With up to 16MP recording, 8 SATA interfaces, up to 96TB theoretical storage capacity, N+1 Hot Spare, ANR technology, ONVIF Profile S/G/T, RTSP, and cloud upgrade support, this NVR provides a flexible platform for high-capacity network video surveillance.
