| UAC-T122-AF28M-W Specifications | |
| Sensor | |
| Pixel | 2MP |
|---|---|
| Sensor | 1/2.9" CMOS |
| Minimum Illumination | 0.005 lux (F1.6, AGC ON) |
| Minimum Illumination with White Light | 0 lux |
| Lens | |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Horizontal Angle of View | 101.5° |
| Vertical Angle of View | 56.9° |
| Diagonal Angle of View | 117.4° |
| Illuminator | |
| Illuminator Type | White light |
| Number of Illuminators | 2 |
| Illumination Distance | Up to 40m |
| Illuminator Lifetime | ≥60,000 hours |
| Video | |
| Resolution | 1080P (1920 × 1080), 720P (1280 × 720) |
| TVI | 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps |
| AHD | 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps |
| CVI | 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps |
| CVBS | PAL, NTSC |
| Shutter Time | PAL 1/25s–1/50000s; NTSC 1/30s–1/50000s |
| Image | |
| Exposure Modes | Global (Default), BLC, HLC, DWDR |
| Day/Night | 24/7 Color Images |
| Digital Noise Reduction | 2D/3D DNR |
| White Balance | Auto (Default), Manual |
| WDR | DWDR |
| Image Flip | 180° Horizontal / 180° Vertical |
| Digital Defog | Supported |
| Audio | |
| Built-in Microphone | Supported |
| TVI Audio | 1080P@25fps, 1080P@30fps |
| CVI Audio | 1080P@25fps, 1080P@30fps |
| Interface | |
| Power Interface | 5.5mm Power Interface |
| Video Output | BNC |
| Video Format | TVI / AHD / CVI / CVBS |
| Operating Environment | |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 4KV Power, 4KV Video Output |
| Ingress Protection | IP67 |
| General | |
| Power Supply | DC12V ±25% |
| Power Consumption | Max. 3.12W |
| Mounting | Wall Mount, Pole Mount, Corner Mount, Pendant Mount |
| Dimensions | Φ111 × 96mm (Diameter × Height) |
| Material | Metal + Plastic |
| Model | UAC-T122-AF28M-W |

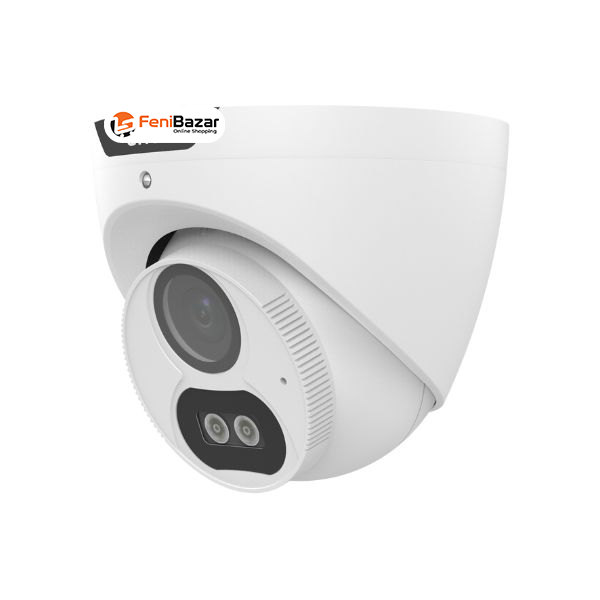

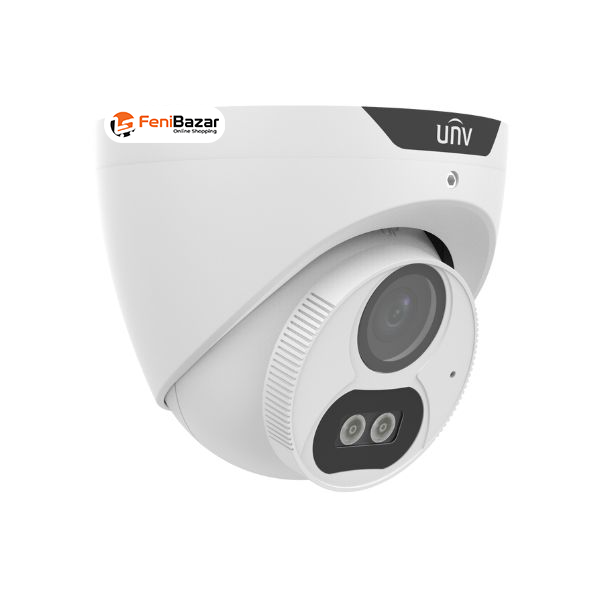

The UAC-T122-AF28M-W is a 2MP analog security camera designed to provide clear 24/7 color images using powerful white-light illumination. It features a 1/2.9" CMOS sensor, a 2.8mm fixed lens, and a wide 101.5° horizontal viewing angle, making it suitable for monitoring a broad surveillance area.
The camera delivers 1920 × 1080 Full HD resolution with a 2MP CMOS sensor. It also supports 720P resolution, providing reliable image quality for everyday surveillance applications.
The camera is equipped with two white-light illuminators with an illumination distance of up to 40 meters. The white-light system supports 24/7 color images, allowing color information to be maintained during nighttime and low-light conditions. The illuminators have a rated lifetime of ≥60,000 hours.
The camera features a 2.8mm M12 lens with a wide field of view of 101.5° horizontal, 56.9° vertical, and 117.4° diagonal, helping cover a wider surveillance area.
The BNC video output supports TVI, AHD, CVI, and CVBS, providing flexible compatibility with different analog surveillance systems. TVI, AHD, and CVI support 1080P and 720P video formats at multiple frame rates.
The camera supports Global, BLC, HLC, and DWDR exposure modes to help optimize images under different lighting conditions. It also features 2D/3D digital noise reduction, DWDR, Auto/Manual white balance, 180° horizontal and vertical image flip, and digital defog.
A built-in microphone allows the camera to capture audio. Audio transmission is supported through compatible TVI and CVI connections at 1080P@25fps and 1080P@30fps.
The camera features a metal + plastic construction and an IP67 ingress protection rating. It supports operation from -30°C to 60°C with humidity up to 95% RH, non-condensing. It also provides 4KV surge protection for power and 4KV protection for the video output interface.
The camera supports wall mount, pole mount, corner mount, and pendant mount installation, providing flexibility for different surveillance setups.
2MP high-quality imaging
1/2.9" CMOS sensor
1920 × 1080 Full HD resolution
2.8mm M12 fixed lens
101.5° horizontal viewing angle
Two white-light illuminators
Up to 40m white-light illumination
24/7 color images
TVI / AHD / CVI / CVBS support
Built-in microphone
2D/3D digital noise reduction
DWDR, BLC and HLC
Digital defog
180° horizontal and vertical flip
IP67 protection
4KV power surge protection
4KV video output surge protection
DC12V ±25% power supply
Maximum power consumption 3.12W
Metal + plastic housing
