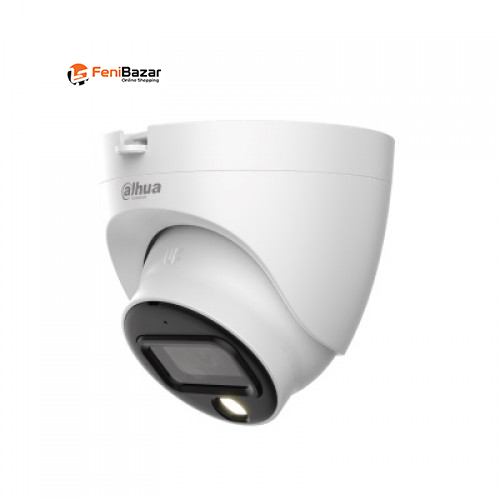

5MP F1.0 Full-Color HDCVI Eyeball Camera with 0.001 Lux
2880×1620 Resolution, 2.8mm/3.6mm F1.0 Fixed Lens & Multi-Format Output
Built-in Mic, 3D NR, WDR, Auto/Manual Focus & 12V DC Power
| General | |
| Casing | Metal inner core + plastic cover + plastic pedestal |
|---|---|
| Dimensions | Φ97.1 × 91.4mm |
| Net Weight | 0.24kg |
| Gross Weight | 0.37kg |
| Pan/Tilt/Rotation | Pan 0°–360° / Tilt 0°–78° / Rotation 0°–360° |
| Operating Temperature | -40°C to +55°C |
| Operating Humidity | <95% RH, non-condensing |
| Storage Temperature | -40°C to +55°C |
| Storage Humidity | <95% RH, non-condensing |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max. 4.4W (12V DC, Warm Light On) |
| Camera | |
| Image Sensor | 5MP CMOS |
| Effective Pixels | 5MP |
| Scanning System | Progressive |
| Electronic Shutter | PAL: 1/3s–1/100000s; NTSC: 1/4s–1/100000s |
| Minimum Illumination | 0.001 Lux @ F1.0; 0 Lux (Warm Light On) |
| S/N Ratio | >65dB |
| Lens | |
| Lens Type | Fixed Lens |
| Mount Type | M12 |
| Focal Length | 2.8mm / 3.6mm |
| Maximum Aperture | F1.0 |
| Angle of View | 2.8mm — H: 112° / V: 57° / D: 132°; 3.6mm — H: 88° / V: 46° / D: 104° |
| Focus Control | Auto / Manual |
| Close Focus Distance | 2.8mm: 1.6m; 3.6mm: 2.3m |
| Video | |
| Resolution | 2880(H) × 1620(V) |
| Frame Rate | PAL 4MP@25fps; NTSC 4MP@30fps |
| CVBS | PAL 960H / NTSC 960H |
| Video Output | CVI / TVI / AHD / CVBS via 1 × BNC |
| BLC Mode | BLC / HLC / WDR / HLC-Pro |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D NR |
| Audio & Interface | |
| Audio | 1-Channel Built-in Microphone |
| Video Interface | 1 × BNC |
| Video Formats | CVI / TVI / AHD / CVBS |
| Warranty | |
| Warranty | 1 Year |
This 5MP fixed-lens camera features a 5MP CMOS sensor with 2880 × 1620 resolution, providing detailed video for surveillance and monitoring applications. Progressive scanning and flexible video output support make it suitable for compatible CCTV systems.
The camera uses an M12 fixed lens with 2.8mm and 3.6mm focal length options and a wide F1.0 aperture. The 2.8mm lens provides a 112° horizontal, 57° vertical and 132° diagonal viewing angle, while the 3.6mm lens provides an 88° horizontal, 46° vertical and 104° diagonal field of view. Auto and manual focus control are also supported.
For low-light surveillance, the camera provides 0.001 lux minimum illumination at F1.0 and supports warm-light illumination. It features BLC, HLC, WDR, HLC-Pro, 3D noise reduction and Auto/Manual gain control for improved image quality in different lighting conditions.
The camera includes a built-in microphone and supports CVI, TVI, AHD and CVBS video formats through a single BNC port. It operates on 12V DC ±30%, with maximum power consumption of 4.4W when the warm light is on. The camera has a metal inner core with a plastic cover and pedestal and comes with a 1-year warranty.
