AOV PT 4G Solar 5MP QHD Outdoor Security Camera
340° Pan, 90° Tilt, Full-Color + IR Night Vision & AOV Recording
AI Human/Vehicle Detection, Two-Way Talk, 4G LTE, 512GB MicroSD & IP66
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Maximum Resolution | 2560 × 1440 |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan 0° to 360°, Tilt 0° to 90°, Rotate 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 2.8 mm / 4 mm optional |
| 2.8 mm FOV | Horizontal 98°, Vertical 54°, Diagonal 114° |
| 4 mm FOV | Horizontal 78°, Vertical 42°, Diagonal 93° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Pixel Density | |
| 2.8 mm DORI | Detect 63 m, Observe 25 m, Recognize 12 m, Identify 6 m |
| 4 mm DORI | Detect 78 m, Observe 31 m, Recognize 15 m, Identify 7 m |
| Illuminator | |
| Supplement Light Type | IR + White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream 50 Hz | 20 fps at 2560 × 1440; 25 fps at 1920 × 1080 / 1280 × 720 |
| Main Stream 60 Hz | 20 fps at 2560 × 1440; 24 fps at 1920 × 1080 / 1280 × 720 |
| Sub-Stream 50 Hz | 25 fps at 1280 × 720 / 640 × 480 / 640 × 360 |
| Sub-Stream 60 Hz | 24 fps at 1280 × 720 / 640 × 480 / 640 × 360 |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream Compression | H.265 / H.264 / MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Profile | Baseline / Main / High Profile |
| H.265 Profile | Main Profile |
| Bit Rate Control | CBR / VBR |
| ROI | 1 fixed region for main stream |
| SVC | H.264 and H.265 encoding |
| Audio | |
| Audio Type | Mono sound |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Environment Noise Filtering | Yes |
| Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711uLaw/G.711aLaw); 16 Kbps (G.722.1/G.726); 32–160 Kbps (MP2L2); 16–64 Kbps (AAC-LC) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface Profile S, Profile T, Profile G; ISAPI; SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users |
| User Levels | Administrator, Operator, User |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE 10/11 with plug-in; Chrome 57.0+; Firefox 52.0+; Edge 89+ |
| Security | Password protection, watermark, HTTP authentication, WSSE and digest authentication, security audit log, MAC address host authentication |
| Image | |
| WDR | 120 dB |
| SNR | ≥52 dB |
| Day/Night Switch | Day / Night / Auto / Schedule |
| Image Enhancement | BLC / HLC / 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain and white balance |
| Privacy Mask | 4 programmable rectangle privacy masks |
| Interface | |
| Ethernet | 1 × RJ45 10/100 Mbps self-adaptive Ethernet port |
| Memory Card Slot | Built-in microSD/microSDHC/microSDXC slot |
| Memory Card Capacity | Up to 512 GB |
| Built-in Microphone | Yes, 1 |
| Built-in Speaker | Yes, maximum sound pressure level 95 dB at 10 cm |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, human and vehicle target detection, video tampering alarm, exception |
| Event Linkage | FTP/memory card upload, surveillance center notification, email, recording, capture, audible warning and flashing light |
| General | |
| Power Supply | 12 VDC ±25%, 0.62 A |
| DC Power Consumption | Max. 7.5 W |
| PoE | IEEE 802.3af, Class 3, max. 9 W |
| Power Connector | Ø5.5 mm coaxial power plug |
| Protection | Reverse polarity protection |
| Material | Metal & Plastic |
| Camera Dimensions | 179 × 67.4 × 69.1 mm |
| Package Dimensions | 216 × 121 × 118 mm |
| Net Weight | Approx. 315 g |
| Package Weight | Approx. 520 g |
| Operating Temperature | -30°C to 60°C |

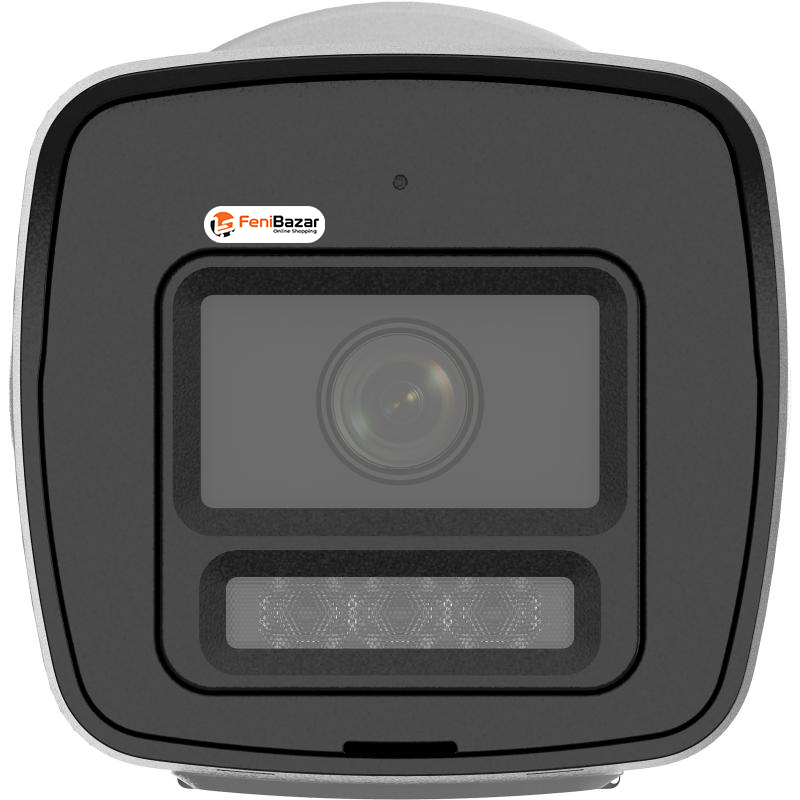

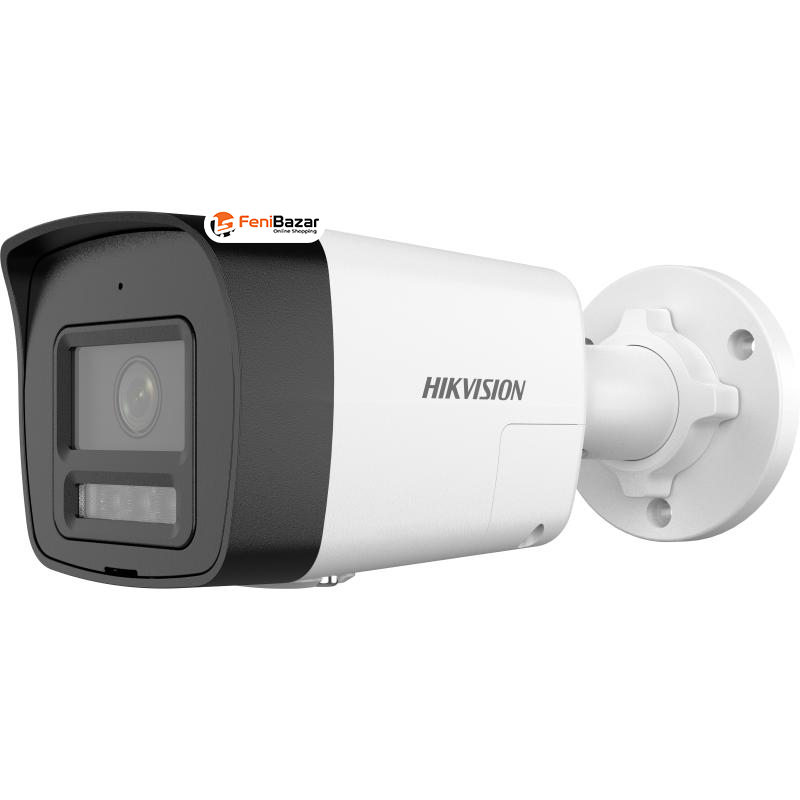

The Hikvision DS-2CD1043G2-LIUF(SL) is a 4MP fixed bullet network camera designed to deliver clear and detailed surveillance video with a maximum resolution of 2560 × 1440. It features a 1/3" Progressive Scan CMOS sensor, 120 dB WDR, 3D DNR, BLC and HLC for improved image quality in challenging lighting conditions.
The camera comes with a fixed focal lens available in 2.8 mm and 4 mm options, providing different viewing angles for various monitoring requirements. Its Smart Supplement Light combines IR and white light illumination with a range of up to 30 meters, while the 850 nm IR wavelength supports effective night-time monitoring.
For video management, the camera supports H.265+, H.265, H.264+ and H.264 compression, with up to 20 fps at 2560 × 1440 resolution. It also supports ROI, SVC and flexible bitrate control. Built-in microphone and speaker enable two-way audio communication, while noise filtering helps provide clearer audio.
The DS-2CD1043G2-LIUF(SL) includes human and vehicle target detection, motion detection, video tampering detection and multiple event linkage options. It supports microSD cards up to 512 GB, PoE, 10/100 Mbps Ethernet, Hik-Connect and iVMS-4200. With IP67 protection, metal and plastic construction, and support for temperatures from -30°C to 60°C, it is suitable for demanding surveillance installations.
