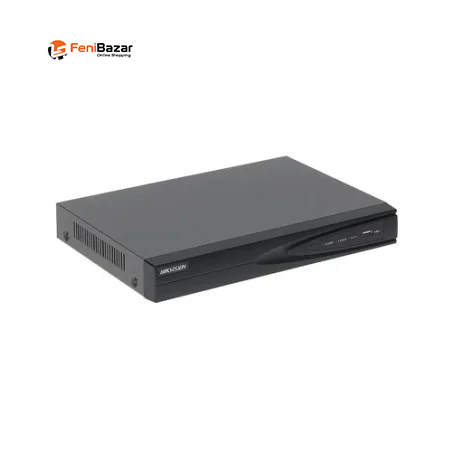

Hikvision DS-7616NI-Q1 16-Channel Network Video Recorder NVR

Hikvision Network Video Recorder NVR

The Hikvision Network Video Recorder (NVR) is a reliable network surveillance recording solution designed to manage IP camera systems with high-resolution video recording, flexible display connectivity, advanced video compression, and convenient playback and backup functions.

High-Resolution IP Camera Support

The NVR supports IP camera connectivity, with the referenced series supporting configurations of up to 16 IP cameras depending on the model. It supports high-resolution IP camera input and recording capabilities of up to 8MP, making it suitable for detailed network surveillance applications.

4K HDMI & VGA Display Output

The supported models feature HDMI and VGA display outputs, with HDMI supporting resolutions up to 4K (3840 × 2160) at 30Hz. HDMI also supports 1920 × 1080p, 1600 × 1200, 1280 × 1024, 1280 × 720, and 1024 × 768 at supported refresh rates.

The VGA output supports resolutions up to 1920 × 1080p at 60Hz, along with 1280 × 1024, 1280 × 720, and 1024 × 768.

Advanced Video Decoding & Compression

The NVR provides flexible decoding capability of:

• 1-channel at 8MP

• 4-channel at 1080p

• 8-channel at 1080p

It supports H.265+, H.265, H.264, and H.264+ video compression technologies, helping optimize video storage and network bandwidth.

High-Quality Recording

The NVR supports recording resolutions ranging from 8MP, 6MP, 5MP, 4MP, and 3MP to 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF.

With a 160Mbps recording rate, it is designed to handle high-bandwidth network video recording requirements.

16-Channel Synchronous Playback

The NVR supports 16-channel synchronous playback, allowing multiple recorded camera feeds to be reviewed simultaneously. Playback functions include live view, storage, and playback, while backup can be performed through USB devices or network connections.

Two-Way Talk

A 1-channel RCA audio interface is provided for two-way talk, with an audio specification of 2.0 Vp-p, 1 kΩ.

Alarm Input & Third-Party Support

Depending on the model configuration, the NVR supports 4/1 optional alarm inputs. It also provides third-party support, allowing integration with compatible surveillance equipment and systems.

Gigabit Network Connectivity

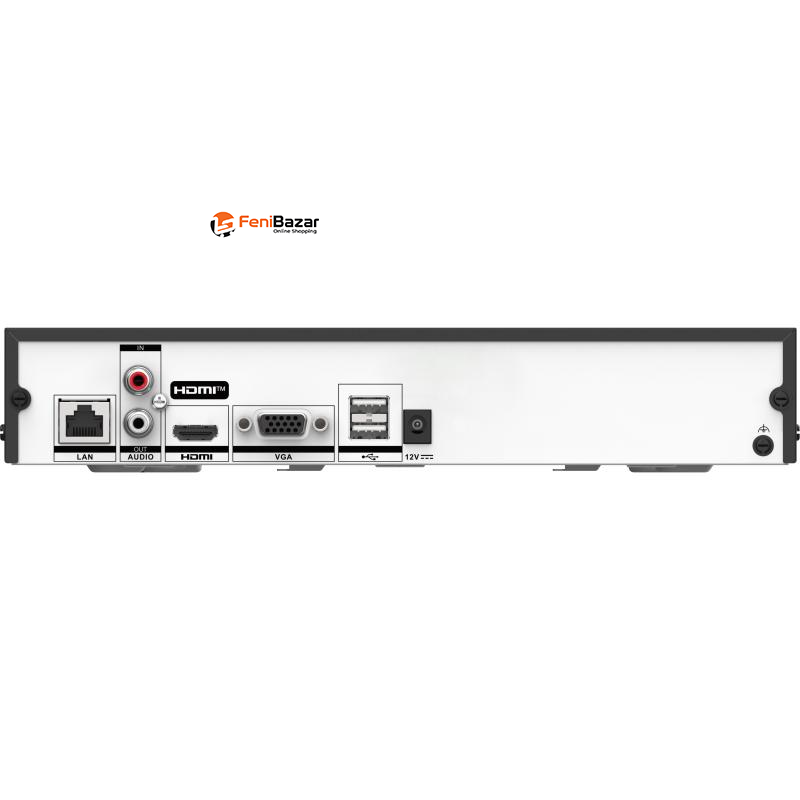

The NVR features 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface. Supported network functions include:

• TCP/IP

• DHCP

• Hik-Connect

• DNS

• DDNS

• NTP

• SADP

• SMTP

• NFS

• iSCSI

• UPnP

• HTTPS

6TB HDD Support

For surveillance storage, the NVR includes 1 SATA interface and supports up to 6TB capacity for each disk. This provides substantial storage capacity for recorded surveillance footage.

USB Connectivity

The recorder includes 2 × USB 2.0 ports for compatible USB devices and backup operations.

Power-Efficient & Compact Design

The NVR operates on 12V DC power. Its power consumption is ≤18W, while consumption without a hard disk is ≤10W.

With dimensions of 315 × 240 × 48mm and a net weight of ≤1kg without disk, the recorder offers a compact form factor for organized surveillance installations.

Key Features

• Hikvision Network Video Recorder

• IP camera support

• Up to 8MP recording resolution

• Up to 16 IP cameras depending on model

• 4K HDMI output up to 3840 × 2160 @ 30Hz

• VGA output up to 1920 × 1080p @ 60Hz

• 1-ch @ 8MP / 4-ch @ 1080p / 8-ch @ 1080p decoding

• H.265+ / H.265 / H.264 / H.264+

• 160Mbps recording rate

• 16-channel synchronous playback

• 1-channel RCA two-way talk

• 4/1 optional alarm input

• USB Device/Network backup

• Third-party support

• 1 × Gigabit Ethernet port

• 1 × SATA interface

• Up to 6TB HDD capacity per disk

• 2 × USB 2.0

• 12V DC power supply

• ≤10W consumption without HDD

• Dimensions: 315 × 240 × 48mm

• Net weight: ≤1kg without disk

Ideal Applications

This Hikvision NVR is suitable for IP-based CCTV surveillance systems, commercial security installations, offices, shops, warehouses, institutions, and other applications requiring high-resolution network video recording, multi-channel playback, 4K display output, and reliable storage support.

Note: The supplied specifications combine information for different models in the series, including DS-7604NI-Q1, DS-7608NI-Q1, and DS-7616NI-Q1. Therefore, model-specific features such as the maximum IP camera count and independent HDMI/VGA outputs should be verified against the exact model before publishing.
