8MP 4K Full-Color PoE IP Camera with 30m IR & White Light
2.8mm/4mm F1.6 Lens, 120dB WDR, SmartIR & Two-Way Audio
AI People & Vehicle Detection, VIGI Smart Detection, 512GB MicroSD & IP67
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
|---|---|
| Maximum Resolution | 3840 × 2160 |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| Lens | |
| Lens Type | Fixed Focal Lens |
| Focal Length | 2.8mm / 4mm |
| Aperture | F1.6 |
| Lens Mount | M12*P 0.5 |
| 2.8mm FOV | Horizontal 111.4°, Vertical 58.8°, Diagonal 134° |
| 4mm FOV | Horizontal 91.5°, Vertical 46.1°, Diagonal 109.6° |
| 2.8mm DORI | Detect 85m, Observe 35m, Recognize 17m, Identify 8m |
| 4mm DORI | Detect 107m, Observe 44m, Recognize 21m, Identify 11m |
| Manual Angle Adjustment | |
| Pan | 0° to 360° |
| Tilt | 0° to 90° |
| Rotation | 0° to 360° |
| Illuminator | |
| IR LED | 2 LEDs, up to 30m, 850nm |
| White LED | 2 LEDs, up to 30m |
| Illuminator Control | Auto / Scheduled / Always On / Always Off |
| Video | |
| Main Stream Resolution | 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 |
| Main Stream Frame Rate | 1/5/10/15/20/25fps |
| Sub-Stream Resolution | 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 |
| Sub-Stream Frame Rate | 1/5/10/15/20/25fps |
| Bit Rate Control | CBR / VBR |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream Compression | H.265 / H.264 |
| H.264 Profile | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Profile | Main Profile |
| H.265+ | Main Stream Supported |
| Main Stream Bit Rate | 256 Kbps to 8 Mbps |
| Sub-Stream Bit Rate | 64 Kbps to 512 Kbps |
| Image | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance |
| Image Enhancement | BLC / 3D DNR / HLC / SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Additional Features | Infrared Overexposure Prevention, Adjustable HLC |
| Audio | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Sampling Rate | 8KHz |
| Audio Bit Rate | 64 Kbps (G.711 A-law) |
| Environment Noise Filtering | Yes |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Network | |
| Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| PoE | Supported |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Supported |
| ONVIF Profile | S / T / G |
| Simultaneous Live View | 3 Main Streams + 3 Sub-Streams |
| Client Platforms | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Cloud | Supported |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Smart Detection | |
| Intrusion Detection | Supported |
| Line-Crossing Detection | Supported |
| Region Entering Detection | Supported |
| Region Exiting Detection | Supported |
| Object Abandoned Detection | Supported |
| Object Removal Detection | Supported |
| Loitering Detection | Supported |
| People Detection | Supported |
| Vehicle Detection | Supported |
| Abnormal Sound Detection | Supported |
| Scene Change Detection | Supported |
This 8MP VIGI network camera features a 1/2.7" Progressive Scan CMOS sensor and delivers up to 3840 × 2160 resolution for detailed surveillance footage. The fixed focal lens is available in 2.8mm and 4mm options, providing wide viewing coverage with up to 120 dB WDR for clearer images in challenging lighting conditions.

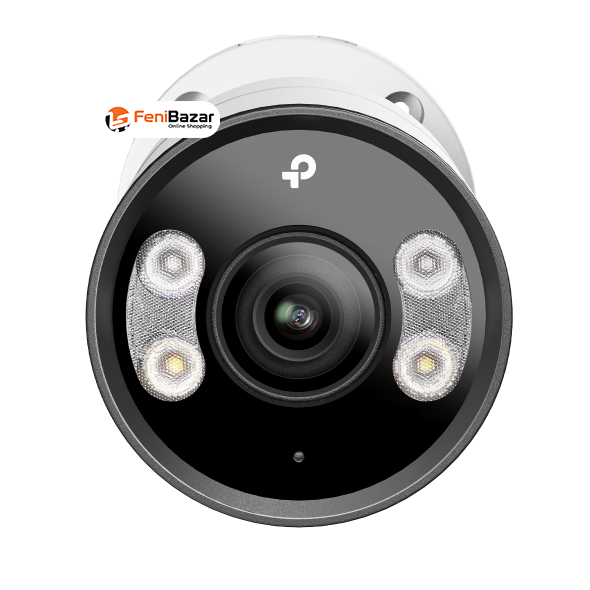

The camera supports dual illumination with 2 IR LEDs and 2 white LEDs, each providing up to 30m illumination. SmartIR, BLC, 3D DNR, HLC, and multiple image adjustment options help maintain clear and balanced video in different surveillance environments.
For intelligent monitoring, it supports intrusion, line-crossing, region entering/exiting, abandoned/removal object, loitering, people, vehicle, abnormal sound, and scene change detection. Human and vehicle classification can also improve motion alert accuracy, while alarm linkage supports memory card recording, message push, audible warnings, and white light flashing.
The camera supports two-way audio with built-in microphone and speaker, along with PoE connectivity through a 10/100M RJ45 port. It supports MicroSD cards up to 512GB, ONVIF Profile S/T/G, VIGI App, VIGI Security Manager, Web UI, VIGI VMS, and VIGI Cloud VMS. With IP67 protection and a metal body, it is designed for reliable surveillance in demanding environments.
