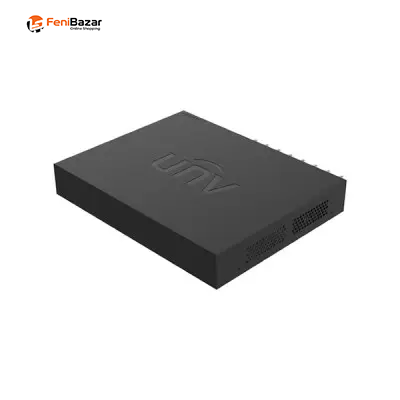

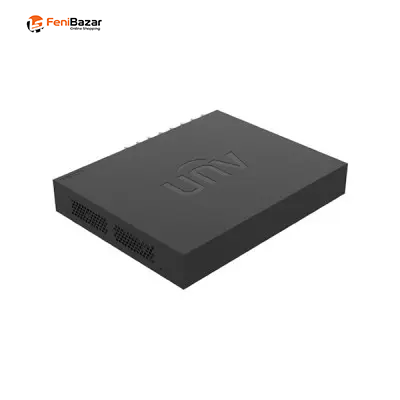

The Uniview XVR301-16F is a 16-channel 1-SATA XVR designed for hybrid surveillance systems using analog and IP cameras. It provides 16-channel BNC analog video inputs along with 2-channel IP video input, with support for expanding IP channels up to 18 channels through analog channel conversion.
The XVR301-16F supports 16-channel analog video input through BNC and accepts AHD, TVI, CVI, and CVBS camera inputs.
It supports:
AHD: 1080P@30fps / 720P@30fps
TVI: 1080P@30fps / 720P@30fps
CVI: 1080P@30fps / 720P@30fps
CVBS input
For IP cameras, it provides 2-channel IP video input, with the ability to support up to 18 IP channels after analog channel conversion. Each IP channel supports up to 8MP resolution.
The XVR supports IP decoding capabilities including:
1 × 8MP@30fps
2 × 4MP@30fps
4 × 1080P@30fps
8 × 720P@30fps
16 × D1@30fps
For analog cameras, it supports up to 16 × 1080P Lite@12fps or 16 × 720P@15fps.
Recording resolutions include 1080P Lite, 720P, and D1. Main-stream recording supports 1080P Lite@12fps and 720P@15fps, while the sub-stream supports D1@12fps / 15fps.
The recorder features 1 SATA interface and supports up to 6TB capacity for each HDD, providing local storage for surveillance recordings.
The XVR provides both HDMI and VGA outputs, supporting display resolutions up to 1920 × 1080p. Live-view layouts include 1, 4, 6, 8, 9, 16, and 25-window display options.
It supports synchronous playback of up to 16 HD channels or 16 SD channels.
The XVR supports G.711U audio compression, with an audio sample rate of 8KHz, 16-bit per channel and an audio bit rate of 64Kbps per channel.
The recorder supports Motion Detection and Ultra Motion Detection (UMD) for up to 8 analog channels. Its Behavior Search function provides VCA search capabilities for supported surveillance events.
The XVR features 1× RJ45 10/100M self-adaptive Ethernet interface and supports network protocols including TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, and SMTP.
It supports up to 128 remote users. The specified incoming bandwidth is 24Mbps, expandable up to 56Mbps after all-analog channel conversion, while outgoing bandwidth is 64Mbps.
The XVR supports Motion Detection as a general alarm function. It also provides alerts for various system conditions, including:
IP conflict
Network disconnection
Disk offline
Disk abnormal
Illegal access
Low hard-disk space
Hard-disk full
Recording/snapshot abnormal
The rear panel provides 2× USB 2.0 ports, allowing connection of compatible USB devices for supported functions such as data backup.
The XVR operates on 12V DC power with a specified power consumption of ≤10W without HDD.
It operates within a temperature range of -10°C to +55°C and supports humidity up to 90% RH, non-condensing.
The recorder is certified with UL, CE, FCC, RoHS, and WEEE standards and comes with a 1-year brand warranty.
Brand: Uniview
Model: XVR301-16F
16-channel XVR
1 SATA interface
Up to 6TB HDD capacity
16-channel BNC analog video input
Supports AHD / TVI / CVI / CVBS
2-channel IP video input
Supports up to 18 IP channels after analog channel conversion
Up to 8MP IP camera support
1080P Lite / 720P / D1 recording
Up to 16-channel synchronous playback
HDMI & VGA outputs
G.711U audio compression
Motion Detection
Ultra Motion Detection for 8 analog channels
Behavior Search
1× RJ45 10/100M Ethernet
2× USB 2.0
128 remote users
24Mbps incoming bandwidth
Up to 56Mbps after all-analog channel conversion
64Mbps outgoing bandwidth
12V DC power
≤10W power consumption without HDD
UL / CE / FCC / RoHS / WEEE certified
1-year brand warranty
Overall, the Uniview XVR301-16F 16-Channel XVR provides a flexible hybrid surveillance recording solution with multi-format analog camera support, up to 8MP IP camera decoding, 1-SATA storage, HDMI/VGA output, network connectivity, and useful motion and VCA detection features.
