16-Channel 32MP NVR with High-Resolution AI Decoding
32MP/24MP/16MP/12MP/8MP/6MP/5MP/4MP Decoding Support
4K HDMI, Gigabit Ethernet, 20TB HDD, 4-Channel Alarm Input & Smart H.265+
| System | |
| Main Processor | Industrial-Grade Processor |
|---|---|
| Operating System | Embedded Linux |
| Audio & Video | |
| IP Camera Input | 16 Channels |
| Display | |
| Interface | 1 × VGA Output, 1 × HDMI Output |
| Video Output | Simultaneous VGA and HDMI Output |
| HDMI Resolution (Simultaneous) | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| VGA Resolution (Simultaneous) | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| HDMI Resolution (Heterogeneous) | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| VGA Resolution (Heterogeneous) | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-Screen Display | Main Screen 1/4/8/9/16; Sub Screen 1/4/8/9/16 |
| Decoding | |
| AI Disabled | 1-ch 12MP@30fps; 2-ch 8MP@30fps; 3-ch 5MP@30fps; 4-ch 4MP@30fps; 8-ch 1080p@30fps |
| AI Enabled | 1-ch 12MP@30fps; 1-ch 8MP@30fps; 2-ch 5MP@30fps; 3-ch 4MP@30fps; 7-ch 1080p@30fps |
| AI Enabled High-Resolution Decoding | 1-ch 32MP@25fps; 1-ch 24MP@25fps; 2-ch 16MP@30fps; 4-ch 12MP@30fps; 6-ch 8MP@30fps; 8-ch 6MP@30fps; 8-ch 5MP@30fps; 12-ch 4MP@30fps |
| Recording | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Recording Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, CIF, QCIF |
| Record Mode | General, Motion Detection, Intelligent, Alarm |
| Video Detection & Alarm | |
| Alarm Input | 4 Channels |
| Playback & Backup | |
| Playback Functions | Instant Playback, General Playback, Event Playback, Tag Playback, Smart Playback |
| Backup Mode | USB Device, Network |
| Third-Party Support | |
| Supported Brands/Protocols | ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Hanwha |
| Network | |
| Ethernet Port | 1 × RJ-45 Gigabit Ethernet (10/100/1000 Mbps) |
| Network Functions | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search |
| Device Support | IP Camera, DVR, NVS and related devices |
| Storage | |
| Internal HDD | 1 × SATA Port |
| Maximum HDD Capacity | Up to 20TB |
| Auxiliary Interface | |
| USB | 2 × Rear USB 2.0 Ports |
| Power | |
| Power Supply | 12V DC, 2A |
| Power Consumption | Less than 10W without HDD |
| Environment | |
| Operating Temperature | –10°C to +55°C |
| Storage Temperature | –20°C to +60°C |
| Construction | |
| Dimensions | 204.6 × 206.4 × 45.6 mm (W × D × H) |
| Net Weight | 0.45 kg |
| Gross Weight | 1.07 kg |
| Warranty | |
| Manufacturing Warranty | 1 Year |

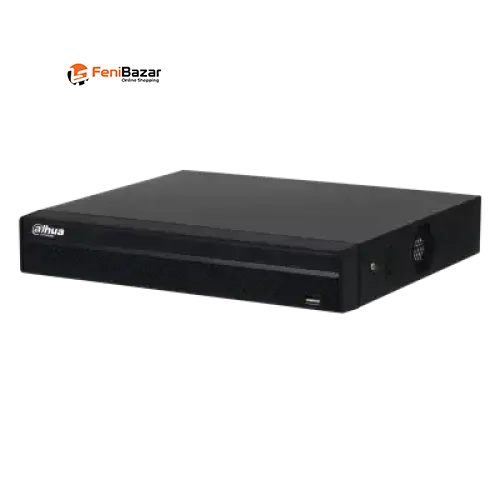

This 16-channel Network Video Recorder (NVR) is designed for reliable IP surveillance recording, monitoring and security management. It features an industrial-grade processor with Embedded Linux and supports up to 16 IP camera channels, making it suitable for medium to large surveillance installations.
The NVR supports high-resolution video decoding up to 12MP, with flexible decoding performance based on AI status. It supports Smart H.265+, H.265, Smart H.264+ and H.264 compression for efficient video recording and storage. Recording modes include general, motion detection, intelligent and alarm recording.

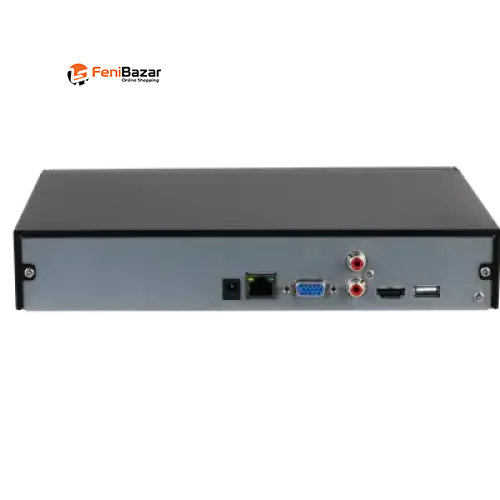

For monitoring, the recorder provides 1 HDMI and 1 VGA output with simultaneous video output support. HDMI supports resolutions up to 3840 × 2160 in simultaneous mode. It also supports multiple screen layouts for flexible live-view monitoring.
The NVR includes 4-channel alarm input, instant, general, event, tag and smart playback, along with USB and network backup. It features a Gigabit RJ-45 Ethernet port, two rear USB 2.0 ports and one SATA interface supporting up to 20TB HDD capacity. The recorder operates on 12V DC and comes with a 1-year manufacturing warranty.
