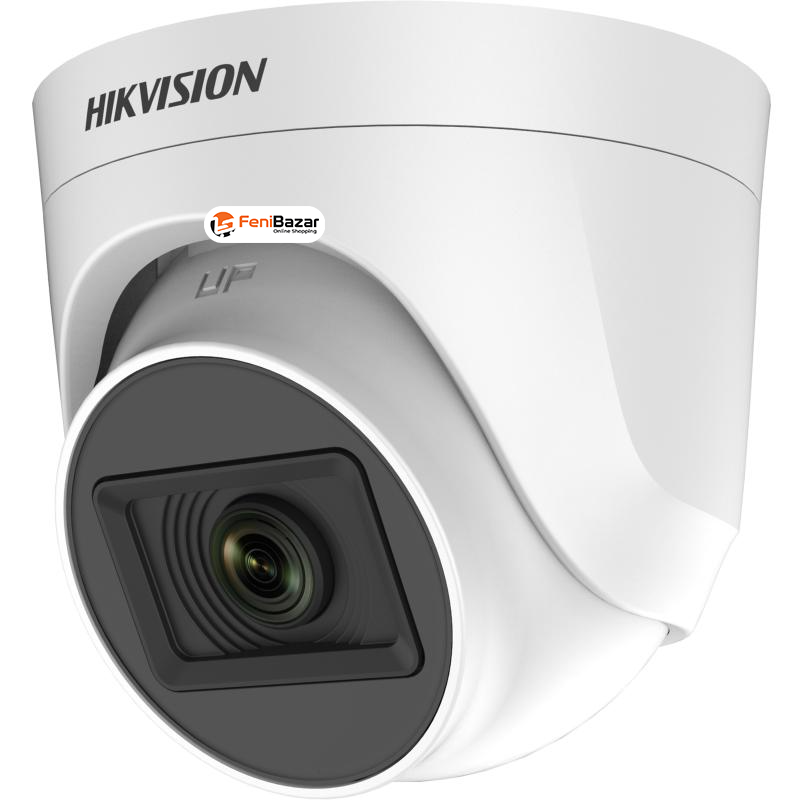

2MP Dome CC Camera with 1080p Full HD Resolution
2.8mm / 3.6mm Fixed Lens with Wide Viewing Angle
20m Supplement Light, Digital WDR, 2D DNR & 4-in-1 Video Output
| Camera | |
| Image Sensor | 2MP CMOS |
|---|---|
| Signal System | PAL / NTSC |
| Maximum Resolution | 1920 × 1080 |
| Minimum Illumination | 0.02 Lux @ F1.2, AGC ON; 0 Lux with IR |
| Shutter Time | PAL 1/25s–1/50,000s; NTSC 1/30s–1/50,000s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan 0°–360°, Tilt 0°–75°, Rotation 0°–360° |
| Lens | |
| Lens Type | 2.8mm / 3.6mm Fixed Lens |
| Lens Mount | M12 |
| 2.8mm FOV | Horizontal 96.5° / Vertical 48.9° / Diagonal 120.5° |
| 3.6mm FOV | Horizontal 76.9° / Vertical 40.6° / Diagonal 92.0° |
| Illuminator | |
| Supplement Light Range | Up to 20m |
| Image | |
| TVI Frame Rate | 1080p@25fps / 30fps |
| AHD Frame Rate | 1080p@25fps / 30fps |
| CVI Frame Rate | 1080p@25fps / 30fps |
| CVBS | PAL / NTSC |
| Wide Dynamic Range | Digital WDR |
| Image Parameter Switch | STD / HIGH-SAT |
| Day/Night Mode | Auto / Color / B&W |
| White Balance | Auto |
| Image Enhancement | DWDR / BLC / Global |
| Noise Reduction | 2D DNR |
| Image Settings | Brightness / Mirror / Smart IR / Sharpness / AGC |
| Interface | |
| Video Output | Switchable TVI / AHD / CVI / CVBS |
| Communication | HIKVISION-C |
| General | |
| Language | English |
| Material | Plastic |
| Dimensions | Φ84.6 × 78.9mm |
| Approx. Weight | 195g |
| Power | |
| Power Supply | 12V DC ±25% |
| Maximum Power Consumption | 3.3W |
| Operating Environment | |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Humidity | ≤90% RH, non-condensing |
This Hikvision 2MP Dome CC Camera is designed to deliver clear Full HD surveillance with a 2MP CMOS image sensor and a maximum resolution of 1920 × 1080. It supports PAL and NTSC signal systems and provides reliable imaging with a minimum illumination of 0.02 Lux, while IR-assisted imaging can operate at 0 Lux.
The camera supports multiple analog video formats, including TVI, AHD, CVI, and CVBS, with 1080p video at 25fps or 30fps. Its switchable video output makes it suitable for integration with compatible analog CCTV systems. The camera also features Digital WDR, DWDR, BLC, Global, 2D DNR, Auto White Balance, and adjustable image settings for improved image quality in different lighting conditions.
Available with 2.8mm and 3.6mm fixed lens options, the camera provides different fields of view for various monitoring requirements. The 2.8mm lens offers a wider viewing angle, while the 3.6mm lens provides a comparatively narrower view. The camera also supports Pan, Tilt, and Rotation adjustment for flexible installation positioning.
With up to 20 meters of supplementary light range, a plastic housing, and an operating temperature range of -40°C to 60°C, this dome camera is designed for reliable surveillance operation. It uses 12V DC power with a maximum consumption of 3.3W and supports HIKVISION-C communication.
