2-Channel XVR with up to 10 IP Camera Support
1080p IP & 1080p HDTVI/AHD/HDCVI Recording Support
8-Channel Playback, 1-SATA up to 4TB & Hik-Connect
| Audio & Video | |
| IP Camera Input | 2 channels, expandable up to 10 channels |
|---|---|
| IP Camera Resolution | Up to 1080p |
| Supported IP Compression | H.265+ / H.265 / H.264+ / H.264 |
| HDTVI Input | 1080p@25fps/30fps, 720p@25fps/30fps |
| AHD Input | 1080p@25fps/30fps, 720p@25fps/30fps |
| HDCVI Input | 1080p@25fps/30fps, 720p@25fps/30fps |
| CVBS Input | Supported |
| Display | |
| Display Interface | 1 × HDMI, 1 × VGA |
| HDMI Output | 1920 × 1080@60Hz, 1280 × 1024@60Hz, 1280 × 720@60Hz |
| VGA Output | 1920 × 1080@60Hz, 1280 × 1024@60Hz, 1280 × 720@60Hz |
| Decoding Capacity | 1-ch@1080p or 2-ch@720p |
| Multi-Screen Display | 8-channel live view |
| OSD | Camera title, time, video loss, camera lock, motion detection, recording |
| Recording | |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Recording Resolution (1080p Stream Access) | 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF |
| Recording Resolution (720p Stream Access) | 720p / WD1 / 4CIF / VGA / CIF |
| Recording Resolution (SD Stream Access) | WD1 / 4CIF / VGA / CIF |
| Main Stream | 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15fps in 1080p stream access |
| Main Stream | 720p/WD1/4CIF/VGA/CIF@15fps in 720p stream access |
| Main Stream | WD1/4CIF/VGA/CIF@25fps (PAL) / 30fps (NTSC) in SD stream access |
| Sub-Stream | 4CIF@15fps; CIF/QVGA@25fps (PAL) / 30fps (NTSC) |
| Bitrate | 32Kbps–4Mbps |
| Record Mode | Manual / Continuous / Event |
| Event Recording | Motion / Video Loss / Exception |
| Record Interval | 1–60 minutes per file |
| Pre-Record | 1–30 seconds |
| Post-Record | 10–300 seconds |
| Stream Type | Video / Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64Kbps |
| Video Detection & Alarm | |
| Trigger Events | Recording, alarm output, email, FTP upload, buzzer, screen tips |
| Video Detection | Motion detection / Tampering alarm / Video loss |
| Alarm Input | N/A |
| Playback & Backup | |
| Synchronous Playback | 8 channels |
| Search Mode | Quick search by object or event type |
| Playback Functions | Play / Pause / Stop / Rewind / Fast Play / Slow Play / Full Screen / Backup Selection |
| Backup Mode | USB device / Network / Browser download |
| Third-Party Support | |
| Third-Party Support | ONVIF / ISAPI |
| Interoperability | ONVIF 16.12 / ISAPI |
| Network | |
| Ethernet Port | 1 × RJ45 10/100Mbps self-adaptive |
| Network Functions | TCP/IP / PPPoE / DHCP / Hik-Connect / DNS / DDNS / NTP / SADP / SMTP / UPnP / HTTPS |
| Maximum User Access | Up to 64 users |
| Smartphone Support | iOS / Android |
| Mobile App | Hik-Connect |
| Storage | |
| Internal HDD Interface | 1 × SATA |
| Maximum HDD Capacity | Up to 4TB per disk |
| HDD Mode | Single |
| Auxiliary Interface | |
| USB | 2 × USB 2.0 |
| RS485 | Supported, half-duplex |
| Power | |
| Power Supply | 12V DC, 1.5A |
| Power Consumption | ≤10W without HDD |
| Operating Environment | |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Construction | |
| Dimensions | 200 × 200 × 48mm |
| Net Weight | ≤1kg without HDD |
| Warranty | |
| Manufacturing Warranty | 1 Year |

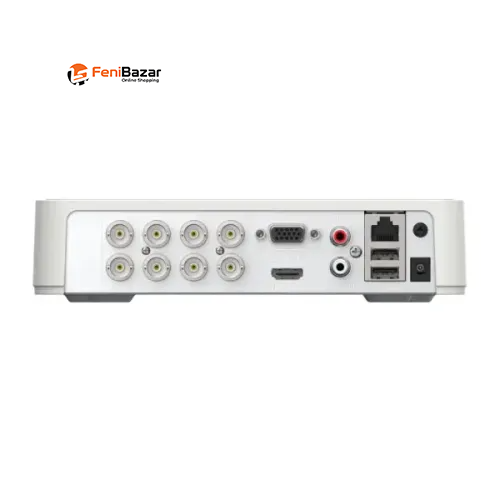

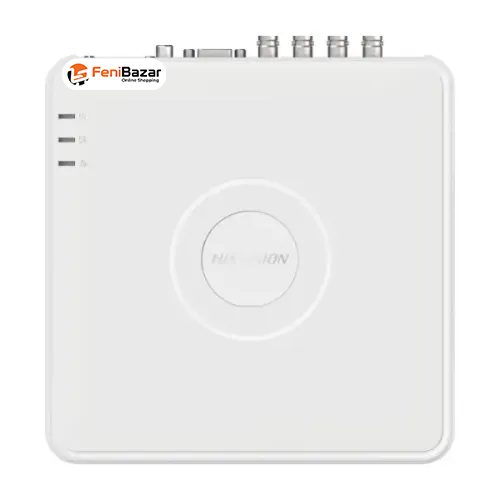

The Hikvision DS-7108HGHI-ECO/M1 is an 8-channel Mini 1U DVR designed for reliable video recording, playback, storage, and network-based surveillance management. It supports HDTVI, AHD, HDCVI, and CVBS camera inputs, along with up to 2-channel IP camera input that can be expanded up to 10 channels. Compatible IP cameras can support resolutions up to 1080p.
The DVR supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression. Recording resolutions include 1080p Lite, 720p Lite, WD1, 4CIF, VGA, and CIF depending on the selected stream access mode. Recording can be configured as manual, continuous, or event-based, with motion detection, video loss, and exception events available as recording triggers.
For monitoring, the DS-7108HGHI-ECO/M1 provides HDMI and VGA outputs with support for up to 1920 × 1080 at 60Hz. It supports 8-channel live view and 8-channel synchronous playback. Playback includes quick search by object or event type, along with functions such as play, pause, rewind, fast play, slow play, full screen, and backup selection.
The recorder features one SATA interface supporting up to 4TB per disk, two USB 2.0 ports, RS485 half-duplex communication, and a 10/100Mbps Ethernet interface. Network functions include Hik-Connect, ONVIF, ISAPI, HTTPS, DDNS, SMTP, and other standard protocols. With 12V DC power, ≤10W consumption without HDD, and a compact 200 × 200 × 48mm design, it is suitable for a variety of CCTV surveillance installations.
