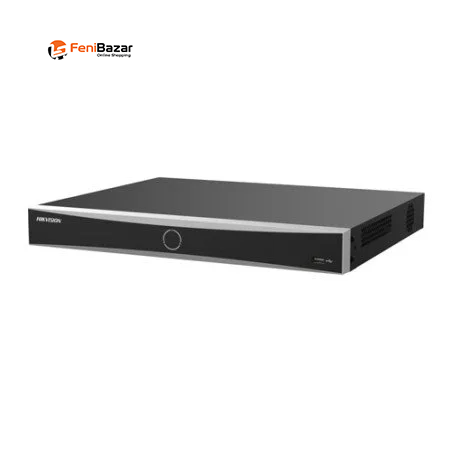

32-Channel 12MP NVR with AcuSense, 16-Channel Playback & 32TB Storage
This 32-Channel Network Video Recorder (NVR) is designed for high-resolution IP camera surveillance systems requiring multiple camera inputs, advanced smart detection, high-capacity storage, and reliable network connectivity. It supports 32-channel IP video input and recording up to 12MP resolution, making it suitable for professional multi-camera surveillance setups.
The NVR supports AcuSense technology, human and vehicle detection, smart search, facial recognition, and Motion Detection 2.0, providing advanced tools for surveillance monitoring and event management.
The NVR supports up to 32 IP video channels and recording resolutions up to 12MP.
For efficient video storage, it supports H.265+, H.265, H.264+, and H.264 compression technologies. These compression formats help optimize storage usage while maintaining recorded video quality.
The recorder provides advanced smart surveillance features including:
AcuSense Technology
Human & Vehicle Detection
Smart Search
Facial Recognition
Motion Detection 2.0
Perimeter Protection
Intrusion Detection
Alarm Notifications
These features help users monitor important events and locate relevant surveillance footage more efficiently.
The NVR features 2 SATA interfaces, with each interface supporting up to 16TB HDD capacity.
With two 16TB HDDs installed, the total supported storage capacity can reach up to 32TB, providing substantial space for high-resolution surveillance recordings.
The NVR supports high-resolution display output through:
HDMI output up to 4K resolution
VGA output up to 1080p
Dual display support
This allows users to monitor live surveillance video and review recorded footage using compatible HDMI and VGA displays.
The recorder supports up to 16-channel synchronous playback, allowing multiple camera recordings to be reviewed simultaneously.
For convenient backup, recorded footage can be exported through USB devices or network connections.

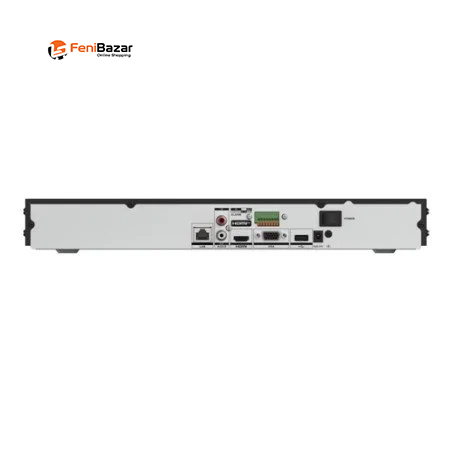

The NVR features a 1× RJ-45 10/100/1000 Mbps Ethernet port for network connectivity.
It supports a wide range of network protocols and services, including:
TCP/IP
DHCP
IPv4
IPv6
DNS
DDNS
NTP
RTSP
HTTP
HTTPS
These network functions support flexible connectivity and remote surveillance management.
The NVR supports 1-channel audio input/output through RCA and provides two-way audio support. This allows compatible IP surveillance systems to incorporate audio communication along with video monitoring.
The recorder operates on an Embedded Linux operating system and features a user-friendly GUI with multi-language support.
Its compact 1U design provides a practical form factor, while the 12V DC power supply supports its operation with low power consumption excluding HDD.
32-Channel IP Video Input
Up to 12MP Recording Resolution
AcuSense Technology
Human & Vehicle Detection
Smart Search
Facial Recognition Support
Motion Detection 2.0
Perimeter Protection
Intrusion Detection
Alarm Notifications
Up to 16-Channel Synchronous Playback
4K HDMI Output
1080p VGA Output
Dual Display Support
2× SATA Interfaces
Up to 16TB per HDD
Up to 32TB Total Storage
H.265+ / H.265 / H.264+ / H.264 Compression
1× RJ-45 10/100/1000 Mbps Ethernet
2× USB 2.0 Ports
1× USB 3.0 Port
1-Channel RCA Audio Input/Output
Two-Way Audio
USB & Network Backup
TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP
RTSP, HTTP & HTTPS
Embedded Linux OS
Multi-Language Interface
User-Friendly GUI
Compact 1U Design
12V DC Power Supply
1-Year Warranty
| Specification | Details |
|---|---|
| Device Type | Network Video Recorder (NVR) |
| IP Video Input | 32 Channels |
| Recording Resolution | Up to 12MP |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| HDMI Output | Up to 4K |
| VGA Output | Up to 1080p |
| Display | Dual Display |
| Playback | Up to 16-Channel Synchronous Playback |
| Backup | USB Device / Network |
| HDD Interface | 2× SATA |
| HDD Capacity | Up to 16TB per HDD |
| Maximum Storage | Up to 32TB |
| Network Interface | 1× RJ-45 10/100/1000 Mbps |
| USB | 2× USB 2.0 + 1× USB 3.0 |
| Audio | 1-Channel RCA Audio Input/Output |
| Two-Way Audio | Supported |
| Smart Features | AcuSense, Human & Vehicle Detection, Smart Search, Facial Recognition |
| Video Detection | Motion Detection 2.0, Perimeter Protection, Intrusion Detection |
| Alarm | Alarm Notifications |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, HTTP, HTTPS |
| Operating System | Embedded Linux |
| Interface | Multi-Language, User-Friendly GUI |
| Design | Compact 1U |
| Power Supply | 12V DC |
| Warranty | 1 Year |
This 32-Channel 12MP NVR is suitable for IP camera surveillance systems requiring multiple IP camera inputs, high-resolution recording, large HDD capacity, intelligent detection, multi-channel playback, and network connectivity.
Overall, this NVR combines 32-channel IP video input, up to 12MP recording, AcuSense human and vehicle detection, facial recognition, Motion Detection 2.0, 16-channel synchronous playback, 4K HDMI output, dual SATA storage, and up to 32TB total HDD capacity in a compact 1U design.
