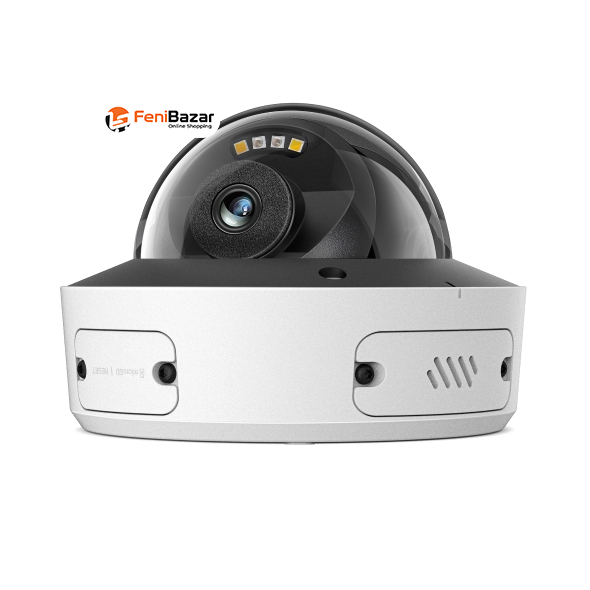

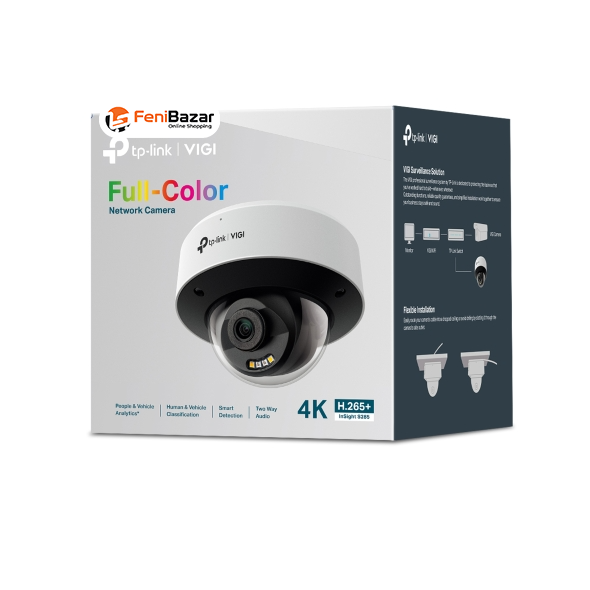

TP-Link VIGI InSight S285 8MP Full-Color Dome Network Camera

N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch. Product data used in this website is based solely on its manufacturer provided information, authenticity and accuracy are their responsibility only

TP-Link VIGI InSight S285 8MP Full-Color Dome Network Camera

INSIGHT S285 TP-LINK CCTV & Security
Call For Price

8MP 4K PoE IP Camera with 30m IR & White Light
2.8mm/4mm F1.6 Lens, 120dB WDR, SmartIR & Two-Way Audio
AI People & Vehicle Detection, 512GB MicroSD, IP67 & IK10 Protection

Delivery: Inside town ৳70 · other areas up to ৳150
Cash on delivery available
Call now WhatsApp
Ask about this product

Specification

Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Maximum Resolution 3840 × 2160
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified / Scheduled / Auto
Lens
Lens Type Fixed Focal Lens
Focal Length 2.8mm / 4mm
Aperture F1.6
Lens Mount M12*P 0.5
2.8mm FOV Horizontal 110°, Vertical 58.1°, Diagonal 133.5°
4mm FOV Horizontal 88°, Vertical 46°, Diagonal 105.4°
2.8mm DORI Detect 85m, Observe 35m, Recognize 17m, Identify 8m
4mm DORI Detect 107m, Observe 44m, Recognize 21m, Identify 11m
Manual Angle Adjustment
Pan 0° to 346°
Tilt 0° to 75°
Rotation 0° to 355°
Illuminator
IR LED 2 LEDs, up to 30m, 850nm
White LED 2 LEDs, up to 30m
Illuminator Control Auto / Scheduled / Always On / Always Off
Video
Maximum Resolution 3840 × 2160
Main Stream Frame Rate 1/5/10/15/20/25fps
Main Stream Resolution 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Sub-Stream Frame Rate 1/5/10/15/20/25fps
Sub-Stream Resolution 848×480, 704×576, 640×480, 640×360, 352×288, 320×240
Bit Rate Control CBR / VBR
Video Compression H.265+ / H.265 / H.264+ / H.264
Sub-Stream Compression H.265 / H.264
H.264 Profile High Profile
H.264+ Main Stream Supported
H.265 Profile Main Profile
H.265+ Main Stream Supported
Main Stream Bit Rate 256 Kbps to 8 Mbps
Sub-Stream Bit Rate 64 Kbps to 512 Kbps
Frame Rate Limitation Up to 20fps when image rotation is 90°/270° or HDR is enabled
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance
Image Enhancement BLC / 3D DNR / HLC / Smart IR
Wide Dynamic Range 120 dB
SNR ≥52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
Additional Image Features Infrared Overexposure Prevention, Adjustable HLC
Audio
Audio Communication Two-Way Audio
Audio Input Yes, Built-in Microphone
Audio Output Yes, Built-in Speaker
Audio Compression Supported
Audio Sampling Rate 8KHz
Audio Bit Rate 64 Kbps (G.711 A-law)
Environment Noise Filtering Yes
Network
Network Interface 1 × RJ45 10/100M Self-Adaptive Ethernet Port
PoE Supported
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
ONVIF Supported
ONVIF Profile S / T / G
Simultaneous Live View 3 Main Streams + 3 Sub-Streams
Client Platforms VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Cloud Supported
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Smart Detection
Intrusion Detection Supported
Line-Crossing Detection Supported
Region Entering Detection Supported
Region Exiting Detection Supported
Object Abandoned Detection Supported
Object Removal Detection Supported
Loitering Detection Supported
People Detection Supported
Vehicle Detection Supported
Abnormal Sound Detection Supported

Description

This VIGI 8MP network camera delivers detailed 4K surveillance with a 1/2.7" Progressive Scan CMOS sensor and up to 3840 × 2160 resolution. Its fixed focal F1.6 lens is available in 2.8mm and 4mm options, providing wide viewing angles and long-range DORI performance for different monitoring requirements.

The camera features dual illumination with 2 IR LEDs and 2 white LEDs, offering up to 30m illumination. It supports Smart IR, BLC, 3D DNR, HLC, and 120 dB WDR to help maintain clear images in changing lighting conditions. Image settings such as brightness, contrast, saturation, sharpness, exposure, and white balance can also be adjusted.

For intelligent surveillance, the camera supports intrusion, line-crossing, region entering/exiting, abandoned/removal object, loitering, people, vehicle, abnormal sound, and scene change detection. Human and vehicle classification enhances motion detection, while People & Vehicle Analytics allows users to search and filter recorded events based on different attributes.

Two-way audio is supported through the built-in microphone and speaker, while PoE provides convenient network and power connectivity through the 10/100M RJ45 port. The camera supports MicroSD storage up to 512GB, ONVIF Profile S/T/G, multiple VIGI software platforms, and cloud connectivity. Its IP67 and IK10 protection with a metal body provides protection against water, dust, and vandalism for demanding surveillance installations.
