Dual 1/1.79" CMOS 5MP Panoramic PoE IP Camera with 180° View
5mm Dual F1.0 Lens, 50m IR & White Light, 120dB WDR
People & Vehicle Detection, Counting, Two-Way Audio, 512GB MicroSD, IP67 & IK10
| Camera | |
| Image Sensor | Dual 1/1.79" Progressive Scan CMOS |
|---|---|
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.0005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length | 5 mm |
| Aperture | Dual F1.0 |
| Horizontal FOV | 180° |
| Vertical FOV | 51° |
| Diagonal FOV | 180° |
| Lens Mount | M16 |
| DORI Distance | Detect 76 m; Observe 29 m; Recognize 14 m; Identify 7 m |
| Angle Adjustment | |
| Pan | 0° to 360° |
| Tilt | 0° to 90° |
| Rotation | 0° to 360° |
| Illuminator | |
| IR LED | 2 LEDs, up to 50 m, 850 nm |
| White LED | 2 LEDs, up to 50 m |
| Illuminator Control | Auto / Scheduled / Always On / Always Off |
| Video | |
| Maximum Resolution | 5456 × 1520 |
| Main Stream Resolution | 5456×1520, 4096×1152, 2160×608 |
| Main Stream Frame Rate | 50Hz: 1/5/10/15/20/25fps; 60Hz: 1/5/10/15/20/24fps |
| Sub-Stream Resolution | 2160×608, 1280×360 |
| Sub-Stream Frame Rate | 50Hz: 1/5/10/15/20/25fps; 60Hz: 1/5/10/15/20/24fps |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264 |
| H.264 Profile | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Profile | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main 256 Kbps–8 Mbps; Sub 64 Kbps–1024 Kbps |
| Frame Rate Limitation | People counting or object attribute analysis limits frame rate to 20fps |
| Image | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, IR Overexposure Prevention, HLC |
| Image Enhancement | BLC / 3D DNR / HLC / SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 4 Regions |
| OSD Setting | Yes |
| Audio | |
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Dual Microphone, Audio In Interface |
| Audio Output | Built-in Speaker, Audio Out Interface |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Network | |
| Network Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP |
| ONVIF | Profile S/T/G |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Web Browser | Chrome 57+, Firefox 52+, Safari 11+, Microsoft Edge 91+ |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication |
| Smart Event | |
| Smart Detection | Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal Sound Detection, Scene Change Detection |
| Motion Detection | Enhanced with Human & Vehicle Classification |
| Video Tampering Detection | Yes |
| Exception Detection | Illegal Login |
| Alarm Input Device | Supported |
| Deep Learning Function | |
| People & Vehicle Analytics | Search and filter people or vehicles based on different attributes |
| People Counting | Entry, exit, and passerby counting using head-shoulder detection |
| Alarm Linkage | |
| Alarm Linkage | Memory Card Recording, FTP Upload, Alarm Output, Push Notifications, Alarm Server, Active Defence Sound Alarm, Active Defence Light Alarm, Email Alarm |
| Interfaces | |
| Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out, Red-Blue Warning Lights |
| Reset Button | Yes |
| Power Interface | DC Power Port |
| Storage | MicroSD Card Slot, up to 512GB |

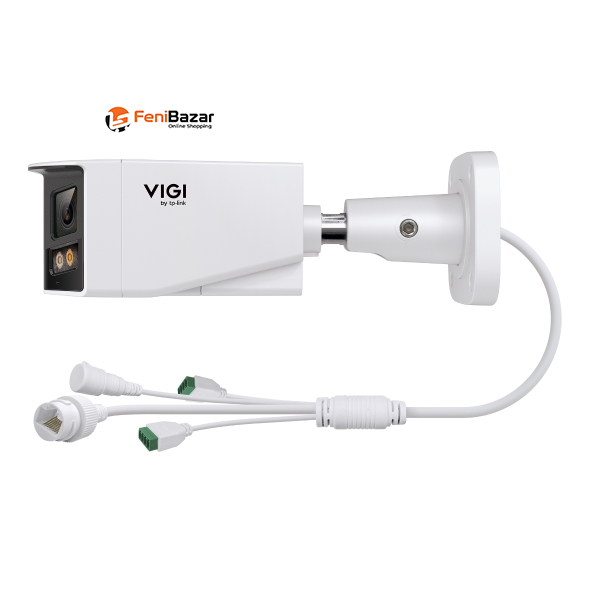

The VIGI dual-lens network camera features dual 1/1.79" Progressive Scan CMOS sensors and delivers a maximum resolution of 5456×1520 for wide-area surveillance coverage. Its dual 5mm fixed focal lenses provide an ultra-wide 180° horizontal and diagonal field of view, making it suitable for monitoring large areas with fewer blind spots.
With a minimum illumination of 0.0005 Lux and dual IR and white LED illumination, the camera provides clear monitoring in low-light environments. Two IR LEDs and two white LEDs offer up to 50m illumination, while SmartIR, WDR 120dB, BLC, 3D DNR, and HLC help maintain image quality in challenging lighting conditions.
The camera supports two-way audio with built-in dual microphones and a built-in speaker. It also offers intelligent event detection including intrusion, line crossing, region entry/exit, loitering, people and vehicle detection, abnormal sound, and scene change detection. People and vehicle analytics and people counting provide additional tools for post-event search and traffic-flow analysis.
For connectivity and storage, the camera includes a 10/100M PoE network interface, alarm input/output, MicroSD card support up to 512GB, and compatibility with ONVIF Profile S/T/G. It supports VIGI App, Web UI, VIGI Cloud VMS, VIGI Config Tool, and VIGI PC Client. With IP67 weatherproof and IK10 vandal-proof protection, the metal camera is designed for demanding surveillance installations.
