AX3000 Wi-Fi 6 Dual-Band Gigabit Router with 2402Mbps 5GHz
574Mbps 2.4GHz, 5dBi Antennas, OFDMA, Beamforming & MU-MIMO
1× Gigabit WAN, 3× Gigabit LAN, WPA3 Security & 2-Year Warranty
| Key Features | |
| Data Rate | 2.4 GHz: Up to 574 Mbps; 5 GHz: Up to 2402 Mbps |
|---|---|
| Antenna | 2.4 GHz: 5 dBi (±0.5); 5 GHz: 5 dBi (±0.5) |
| Button | 1 × Reset/WPS Button |
| Frequency | 2.412 GHz – 2.472 GHz; 5.170 GHz – 5.330 GHz; 5.735 GHz – 5.835 GHz |
| Network Standard | 2.4 GHz: IEEE 802.11 b/g/n/ax; 5 GHz: IEEE 802.11 a/b/g/n/ac/ax |
| Encryption | WPA-PSK; WPA2-PSK; WPA-PSK/WPA2-PSK; WPA3-PSK; WPA2-PSK/WPA3-PSK |
| Others | 6th Gen Wireless Technology, Beamforming, OFDMA, 1024-QAM, Bi-directional MU-MIMO, Guest Wi-Fi, Parental Control |
| Ports | |
| WAN Port | 1 × 10/100/1000 Mbps |
| LAN Port | 3 × 10/100/1000 Mbps |
| Power Source | |
| Power Mode | 12 VDC, 1.5 A |
| Physical Dimension | |
| Dimension | 262.2 × 150.1 × 184.5 mm (L × W × H) |
| Weight | 0.36 kg (0.79 lb) |
| Color | Black |
| Manufacturer Warranty | |
| Warranty | 2 Years Replacement Warranty |

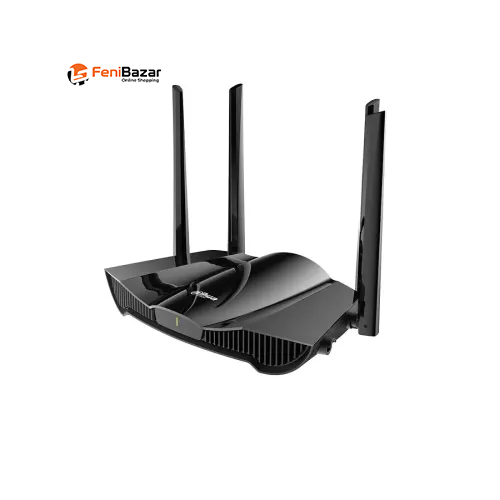

The Dahua DH-AX30 AX3000 Dual Band Gigabit Wi-Fi 6 Router is designed to deliver fast and efficient wireless connectivity for homes, offices, and other modern network environments. It supports Wi-Fi 6 technology with wireless speeds of up to 574 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band, providing combined AX3000-class performance for high-speed internet access and multiple connected devices.
The router features 5 dBi antennas on both the 2.4 GHz and 5 GHz bands, along with beamforming technology for improved wireless coverage. OFDMA, 1024-QAM, and bi-directional MU-MIMO help improve network efficiency and data transmission when multiple devices are connected. Guest Wi-Fi and parental control features provide additional flexibility for managing wireless access.

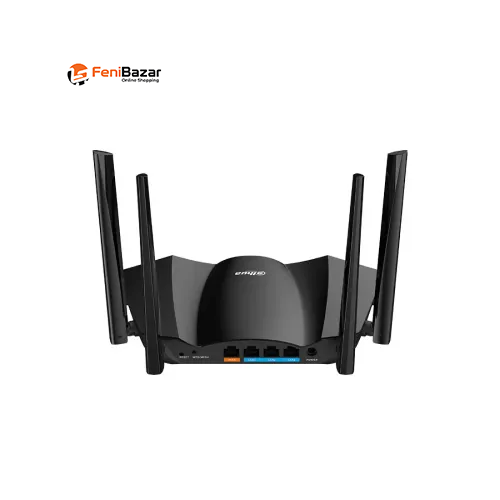

For wired networking, the Dahua DH-AX30 provides one Gigabit WAN port and three Gigabit LAN ports. It supports IEEE 802.11 b/g/n/ax on 2.4 GHz and IEEE 802.11 a/b/g/n/ac/ax on 5 GHz. The router supports WPA-PSK, WPA2-PSK, WPA3-PSK, and combined security modes for wireless network protection.
The Dahua DH-AX30 operates with a 12 VDC, 1.5 A power supply and features a black design measuring 262.2 × 150.1 × 184.5 mm. It includes a Reset/WPS button and supports modern Wi-Fi 6 features for efficient wireless networking. The router comes with a 2-year replacement warranty, making it suitable for users looking for a Gigabit dual-band Wi-Fi 6 networking solution.
