8-Port PoE Unmanaged Switch with 60W Total PoE Power
8× 10/100Mbps PoE Ports, 2× 10/100Mbps Uplink Ports & 2Gbps Switching
IEEE 802.3af/at, 250m Long-Distance PoE, 2K MAC & Long-Distance DIP Mode
| Basic | |
| Switch Type | Unmanaged |
|---|---|
| Switching Capacity | 2 Gbps |
| Packet Forwarding Rate | 1.488 Mpps |
| PoE Ports | 8 × RJ45 10/100 Mbps PoE Ports |
| Uplink Ports | 2 × RJ45 10/100 Mbps Uplink Ports |
| Operating Temperature | –10°C to +55°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Storage Temperature | –40°C to +75°C |
| Storage Humidity | 5%–95% RH, Non-Condensing |
| Power Supply | External Power Supply, 53V, 50/60Hz, Max 1.22A |
| Power Consumption | 1.9W Idle; 63.6W Full Load |
| Static Protection | Air Discharge 8kV; Contact Discharge 6kV |
| Lightning Protection | Common Mode 6kV; Differential Mode 1kV |
| Net Weight | 0.28 kg |
| Gross Weight | 0.861 kg |
| Product Dimensions | 184.6 × 77.4 × 27 mm (L × W × H) |
| Packaging Dimensions | 253 × 112 × 83 mm (L × W × H) |
| Casing Material | Sheet Metal |
| Installation | Desktop Mount; Wall Mount |
| Certification | CE |
| PoE | |
| PoE Support | Yes |
| PoE Power | Up to 30W per Port; 60W Total |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at |
| PoE Pin Assignment | 1, 2, 4, 5 (V+); 3, 6, 7, 8 (V–) |
| Long Distance PoE Transmission | Yes |
| Hardware | |
| DIP Switch | Long Distance PoE |
| Long Distance Transmission | Ports 1–8 can reach up to 250 meters |
| Long Distance Mode Speed | Negotiation speed can be reduced to 10 Mbps |
| Performance | |
| Packet Buffer Size | 768 Kbit |
| Jumbo Frame | 2048 Byte |
| MAC Table Size | 2K |
| Communication Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3x |
| General | |
| Packing List | 1 × User Manual; 1 × Legal and Regulatory Information; 1 × Power Cord; 1 × Power Adapter |

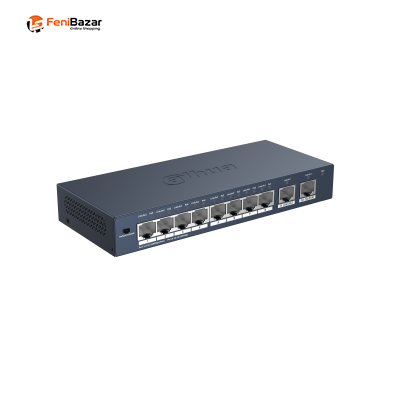

This 10-port unmanaged PoE switch is designed for IP camera and network device connectivity, featuring 8 × 10/100 Mbps RJ45 PoE ports and 2 × 10/100 Mbps RJ45 uplink ports. With a 2 Gbps switching capacity and 1.488 Mpps packet forwarding rate, it provides reliable network data transmission for surveillance and other network applications.
The switch supports IEEE 802.3af and IEEE 802.3at PoE standards, delivering up to 30W per PoE port with a total PoE power budget of up to 60W. Compatible devices can receive power and network connectivity through a single Ethernet cable, helping simplify CCTV installation.
A built-in DIP switch enables Long Distance PoE transmission, allowing ports 1–8 to reach up to 250 meters when the long-distance mode is enabled. In this mode, the negotiation speed can be reduced to 10 Mbps. The switch also features a 768 Kbit packet buffer, 2048-byte jumbo frame support and a 2K MAC address table.
The switch comes with a sheet-metal casing and supports both desktop and wall mounting. It operates from –10°C to +55°C and includes static and lightning protection. With its 8 PoE ports, long-distance transmission support and compact design, it is suitable for CCTV and network installations requiring extended PoE connectivity.
