4-Port PoE Unmanaged Switch with 36W Total PoE Power
4× 10/100Mbps PoE Ports, 2× 10/100Mbps Uplink Ports & 1.2Gbps Switching
IEEE 802.3af/at, Up to 30W per Port, 8kV Air & 6kV Contact Protection
| Basic | |
| Switch Type | Unmanaged |
|---|---|
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.893 Mpps |
| PoE Ports | 4 × RJ45 10/100 Mbps PoE Ports |
| Uplink Ports | 2 × RJ45 10/100 Mbps Uplink Ports |
| Operating Temperature | –10°C to +55°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Storage Temperature | –40°C to +75°C |
| Storage Humidity | 5%–95% RH, Non-Condensing |
| Power Supply | External Power Supply, 53V, 50/60Hz, Max 0.8A |
| Power Consumption | 1.3W Idle; 38.3W Full Load |
| Static Protection | Air Discharge 8kV; Contact Discharge 6kV |
| Lightning Protection | Common Mode 6kV; Differential Mode 1kV |
| Net Weight | 0.19 kg |
| Gross Weight | 0.635 kg |
| Product Dimensions | 115.5 × 84.3 × 27 mm (L × W × H) |
| Packaging Dimensions | 196 × 115 × 85 mm (L × W × H) |
| Casing Material | Sheet Metal |
| Installation | Desktop Mount, Wall Mount |
| Certification | CE |
| PoE | |
| PoE Support | Yes |
| PoE Power | Up to 30W per Port; 36W Total |
| PoE Protocol | IEEE 802.3af, IEEE 802.3at |
| PoE Pin Assignment | 1, 2, 4, 5 (V+); 3, 6, 7, 8 (V–) |

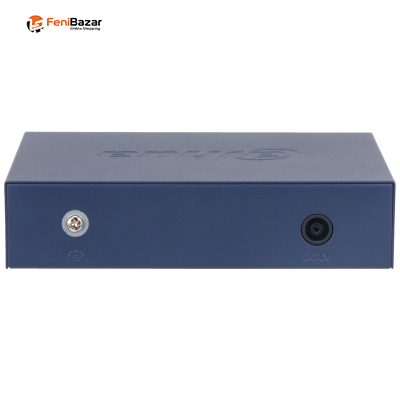

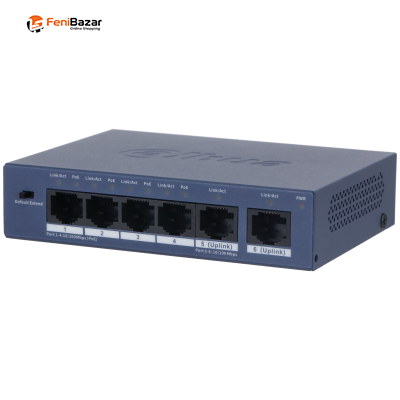

The Dahua S3006-4ET-36 is a 6-port unmanaged PoE switch designed for IP camera and network device connectivity. It features four 10/100 Mbps RJ45 PoE ports and two 10/100 Mbps RJ45 uplink ports, providing a simple and practical networking solution for small surveillance installations.
The switch supports IEEE 802.3af and IEEE 802.3at PoE standards, with up to 30W PoE output per port and a total PoE budget of up to 36W. This allows compatible PoE devices to receive both network connectivity and power through a single Ethernet cable.
With a 1.2 Gbps switching capacity and a packet forwarding rate of 0.893 Mpps, the S3006-4ET-36 provides reliable data transmission for connected devices. It is an unmanaged switch, so it can be deployed without complex configuration.
The switch features a compact sheet-metal casing and supports both desktop and wall mounting. It operates from –10°C to +55°C and includes 8 kV air-discharge and 6 kV contact-discharge static protection, along with common-mode and differential-mode lightning protection. The Dahua S3006-4ET-36 is suitable for compact CCTV and network installations requiring PoE connectivity.
