8-Port Gigabit PoE Unmanaged Switch with 60W Total PoE Power
8× 10/100/1000Mbps PoE Ports, 2× Gigabit Uplink Ports & 20Gbps Switching
IEEE 802.3af/at, 250m Long-Distance PoE, 2K MAC & 9216-Byte Jumbo Frame
| Basic | |
| Switch Type | Unmanaged |
|---|---|
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE Ports | 8 × RJ45 10/100/1000 Mbps PoE Ports |
| Uplink Ports | 2 × RJ45 10/100/1000 Mbps Uplink Ports |
| Operating Temperature | –10°C to +55°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Storage Temperature | –40°C to +75°C |
| Storage Humidity | 5%–95% RH, Non-Condensing |
| Power Supply | External Power Supply, 53V, 50/60Hz, Max 1.22A |
| Power Consumption | 2.2W Idle; 67.5W Full Load |
| Static Protection | Air Discharge 8kV; Contact Discharge 6kV |
| Lightning Protection | Common Mode 6kV; Differential Mode 1kV |
| Net Weight | 0.3 kg |
| Gross Weight | 0.8 kg |
| Product Dimensions | 184.6 × 77.4 × 27 mm (L × W × H) |
| Packaging Dimensions | 253 × 112 × 83 mm (L × W × H) |
| Casing Material | Sheet Metal |
| Installation | Desktop Mount; Wall Mount |
| Certification | CE |
| PoE | |
| PoE Support | Yes |
| PoE Power | Up to 30W per Port; 60W Total |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at |
| PoE Pin Assignment | 1, 2, 4, 5 (V+); 3, 6, 7, 8 (V–) |
| Long Distance PoE Transmission | Yes |
| Hardware | |
| DIP Switch | Long Distance PoE |
| Long Distance Transmission | Ports 1–8 can reach up to 250 meters |
| Long Distance Mode Speed | Negotiation speed can be reduced to 10 Mbps |
| Performance | |
| Packet Buffer Size | 1 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 2K |
| Communication Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x |
| General | |
| Packing List | 1 × User Manual; 1 × Legal and Regulatory Information; 1 × Power Cord; 1 × Power Adapter |

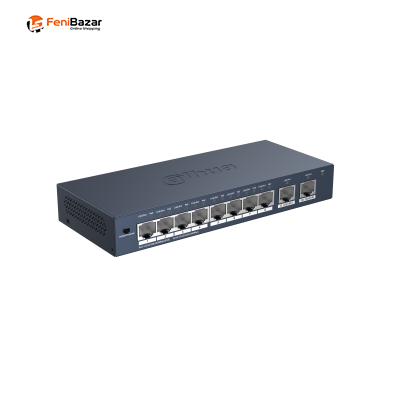

This 10-port unmanaged Gigabit PoE switch is designed for IP camera and network device connectivity. It features 8 × RJ45 10/100/1000 Mbps PoE ports and 2 × RJ45 10/100/1000 Mbps uplink ports, providing Gigabit network connectivity for surveillance and other compatible network devices.
The switch supports IEEE 802.3af and IEEE 802.3at PoE standards, delivering up to 30W per PoE port with a total PoE power budget of up to 60W. This allows compatible PoE devices to receive both power and network data through a single Ethernet cable.
Long Distance PoE transmission is supported through the DIP switch. When enabled, ports 1–8 can transmit PoE over distances of up to 250 meters, while the negotiation speed can be reduced to 10 Mbps. The switch provides a 20 Gbps switching capacity and a packet forwarding rate of 14.88 Mpps for efficient data transmission.
The switch features a compact sheet-metal casing with desktop and wall-mount installation options. It also provides a 1 Mbit packet buffer, 9216-byte jumbo frame support, 2K MAC address table and static and lightning protection. This makes it suitable for CCTV and network installations requiring Gigabit PoE and extended transmission distances.
